Folding CartonsCustom Packaging
Custom Folding Cartons — Tuck End, Auto-Bottom & Window Box Packaging
Key Takeaways — Custom Folding Cartons
MOQ
500 units
Lead Time
10-15 days
Printing
Full Color CMYK
Eco Options
FSC Certified
Shipping
Free Shipping
What Are Custom Folding Cartons?
A folding carton is a flat paperboard box that ships knocked-down and folds into shape at the point of packing. Folding cartons are the #1 retail packaging format in the world — the global market is valued at $287 billion (Smithers, 2025) and accounts for over 35% of all consumer product packaging. Custom folding cartons cost $0.25–$3.00/unit depending on size, paperboard grade, printing method, and finishing.
Folding cartons are made from solid paperboard — SBS (Solid Bleached Sulfate) for premium white surfaces, CCNB (Clay Coated News Back) for cost-effective retail, or kraft for eco-friendly applications. Board thickness ranges from 12pt (.012") for lightweight cosmetics to 24pt (.024") for heavy retail products. All grades are FSC-certifiable and recyclable.
Choose from 5+ box styles: Straight Tuck End (STE) for general retail, Reverse Tuck End (RTE) for shelf display, Auto-Bottom with snap-lock for heavy products, Window Cartons with die-cut apertures for product visibility, and Sleeve & Tray for premium unboxing. Each style supports full offset or digital CMYK printing, Pantone PMS matching, and embellishments including foil stamping, embossing, spot UV, soft-touch lamination, and aqueous coating.
Food brands, cosmetics companies, pharmaceutical manufacturers, supplement brands, and e-commerce retailers choose Cubit for precision-engineered cartons with ±0.5mm die-cut tolerances, automated gluing at 100,000+ units/hour, and FDA-compliant substrates for direct food contact. Production starts at 500 units with 10–15 day lead times. Rush orders available in 5–7 days.
Specifications
Detailed technical information for informed decisions.

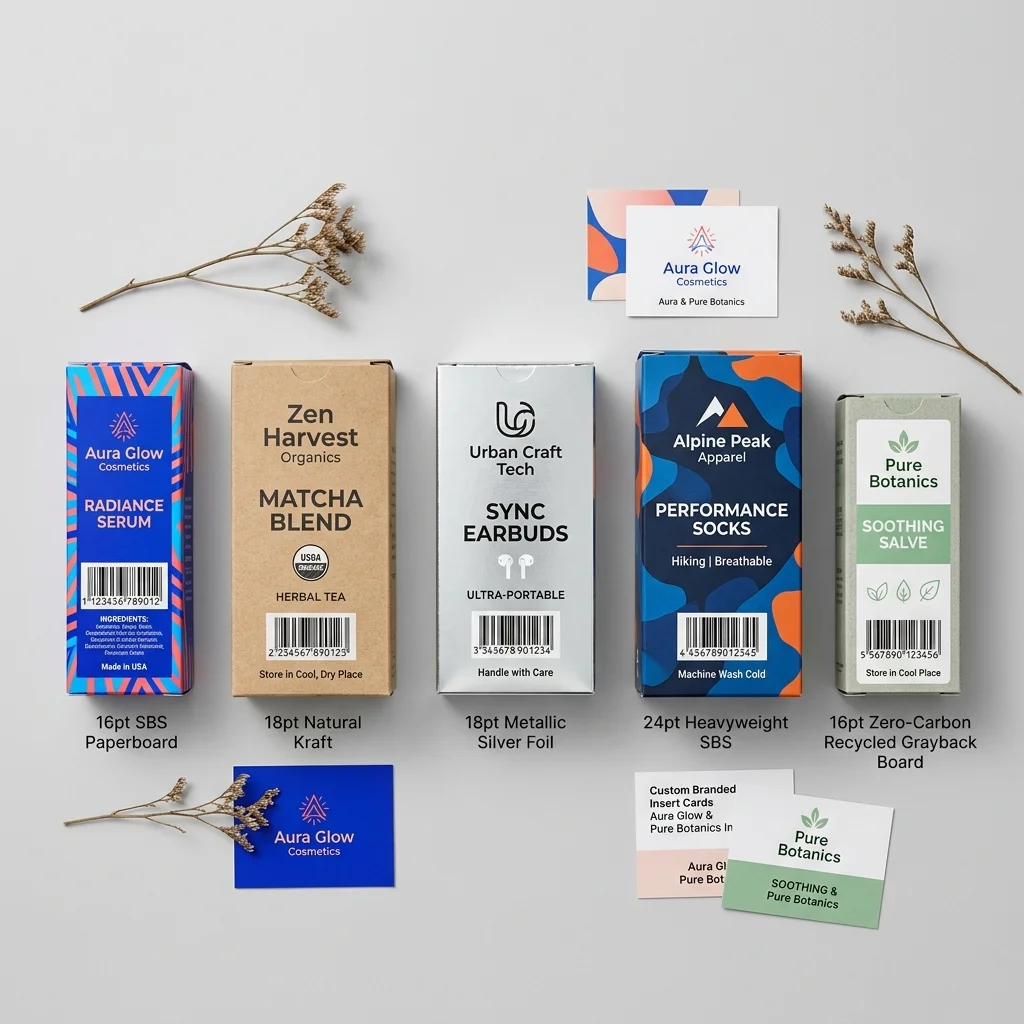

Substrates
- SBS (C1S)10pt – 24pt coated one side
- SBS (C2S)10pt – 24pt coated two sides
- CCNB18pt – 28pt clay-coated news back
- Kraft Paperboard12pt – 24pt natural brown
Tolerances
- Die-cut accuracy±0.5mm
- Print registration±0.15mm
- Fold accuracy±0.3mm
- Color matchingDelta E < 2.0
Capabilities
- Min size1.5" × 1.5" × 1"
- Max size24" × 18" × 12"
- Gluing speedUp to 100,000 units/hr
- MOQ500 units

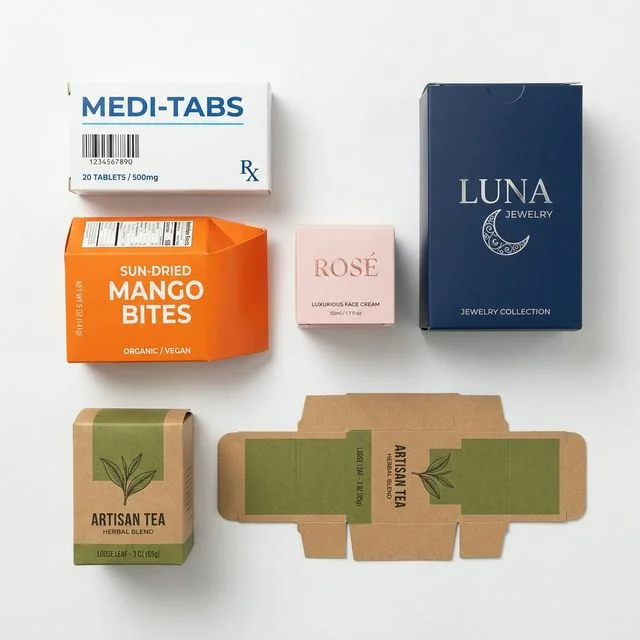

The most versatile box in packaging. Works for pharma, food, beauty, and retail. SBS or kraft board.
Custom Folding Cartons

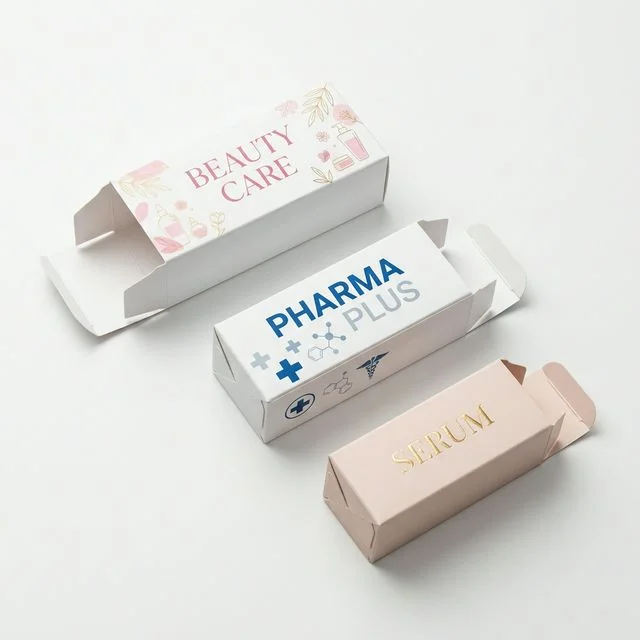

Standard folding cartons with opposite-direction tuck flaps. Clean look for cosmetics and OTC pharma.
Reverse Tuck End Boxes

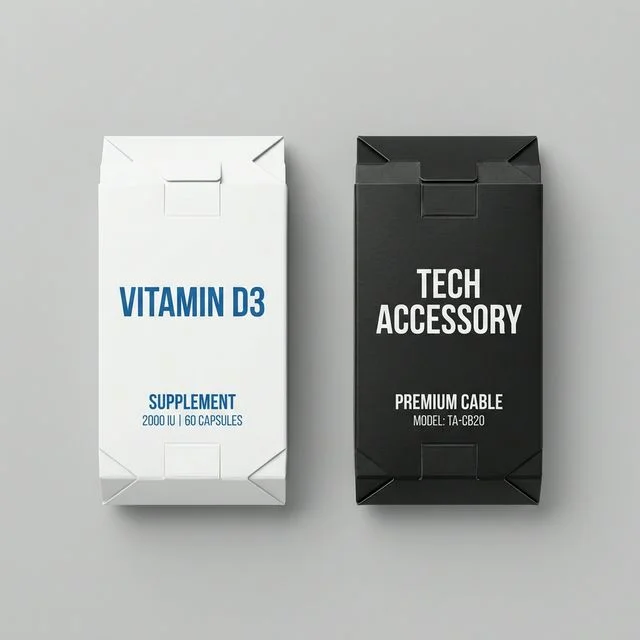

Both flaps tuck the same direction. Simple folding carton for supplements, health products, and electronics.
Straight Tuck End Boxes

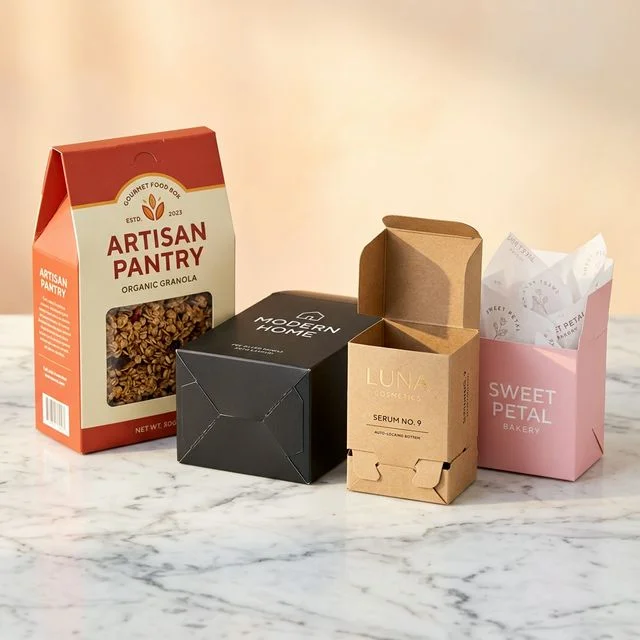

Pop open in seconds with a self-locking base, so your packing line moves faster.
Auto-Bottom Boxes
Glued-shut ends that cannot be opened without visible damage. Tamper-evident for food and pharma.
Seal End Boxes

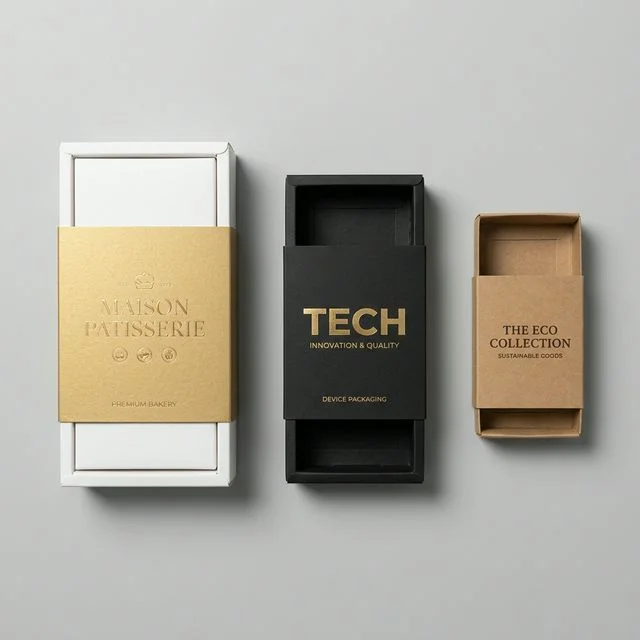

A printed sleeve that slides over a tray. Two-piece presentation style used for bakery, tech, and luxury.
Sleeve Boxes

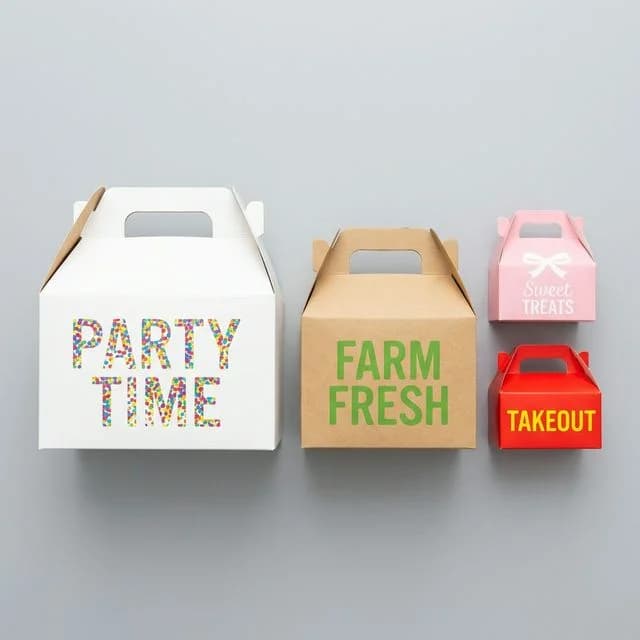

Carry-handle boxes for takeout, pastries, and party packs. Folds flat, pops up in seconds.

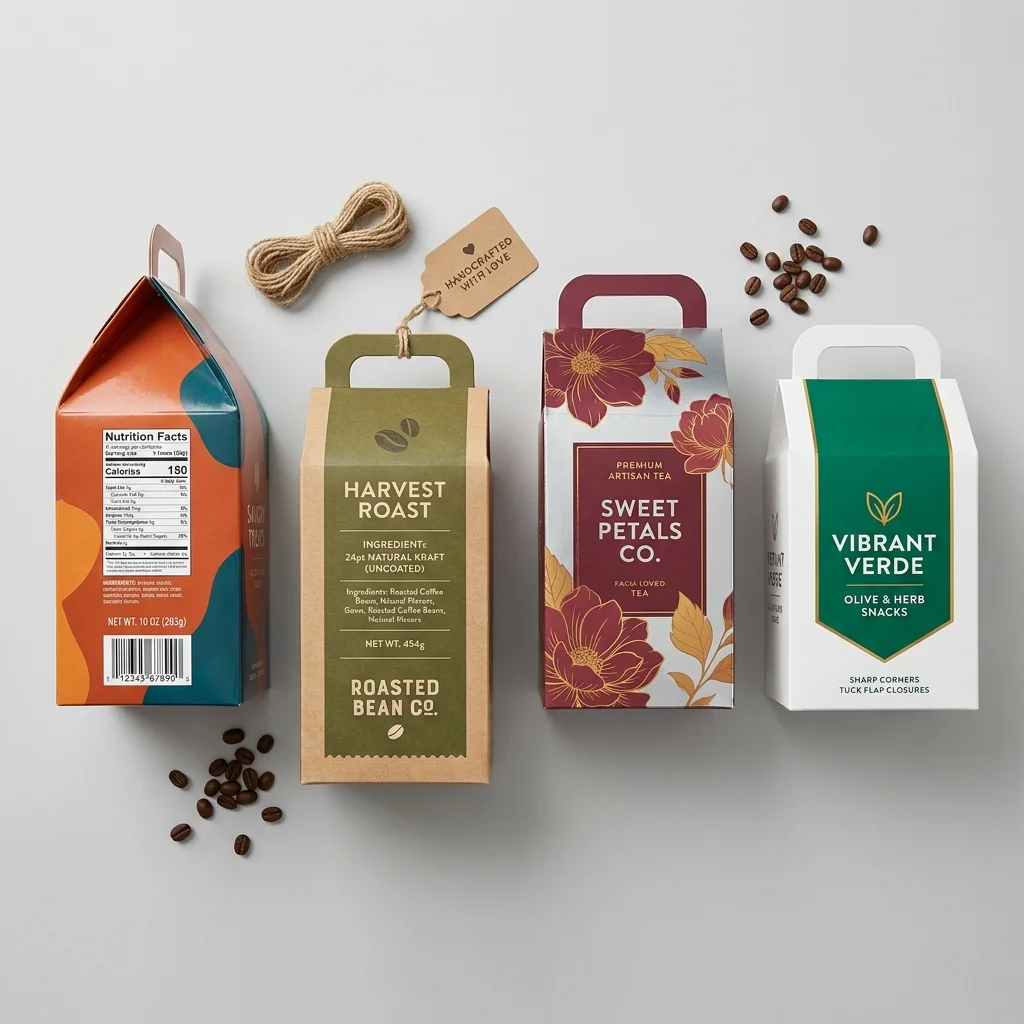

Gable Boxes

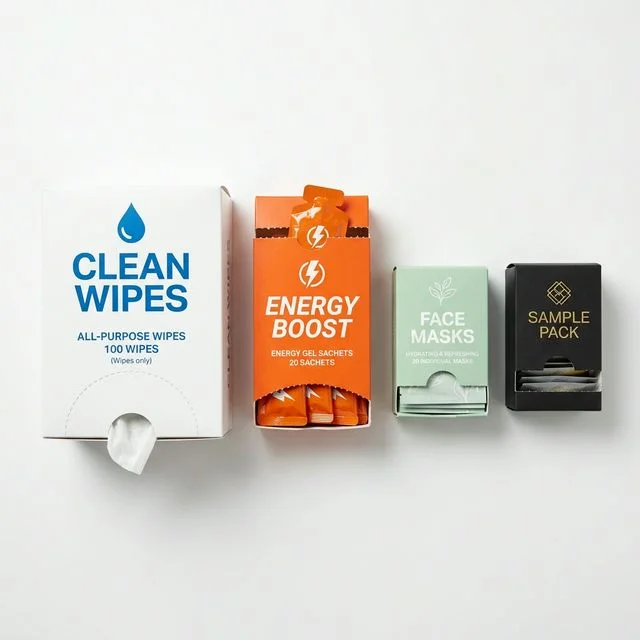

Pull-out or tear-off dispensers for wipes, sachets, masks, and sample packs.

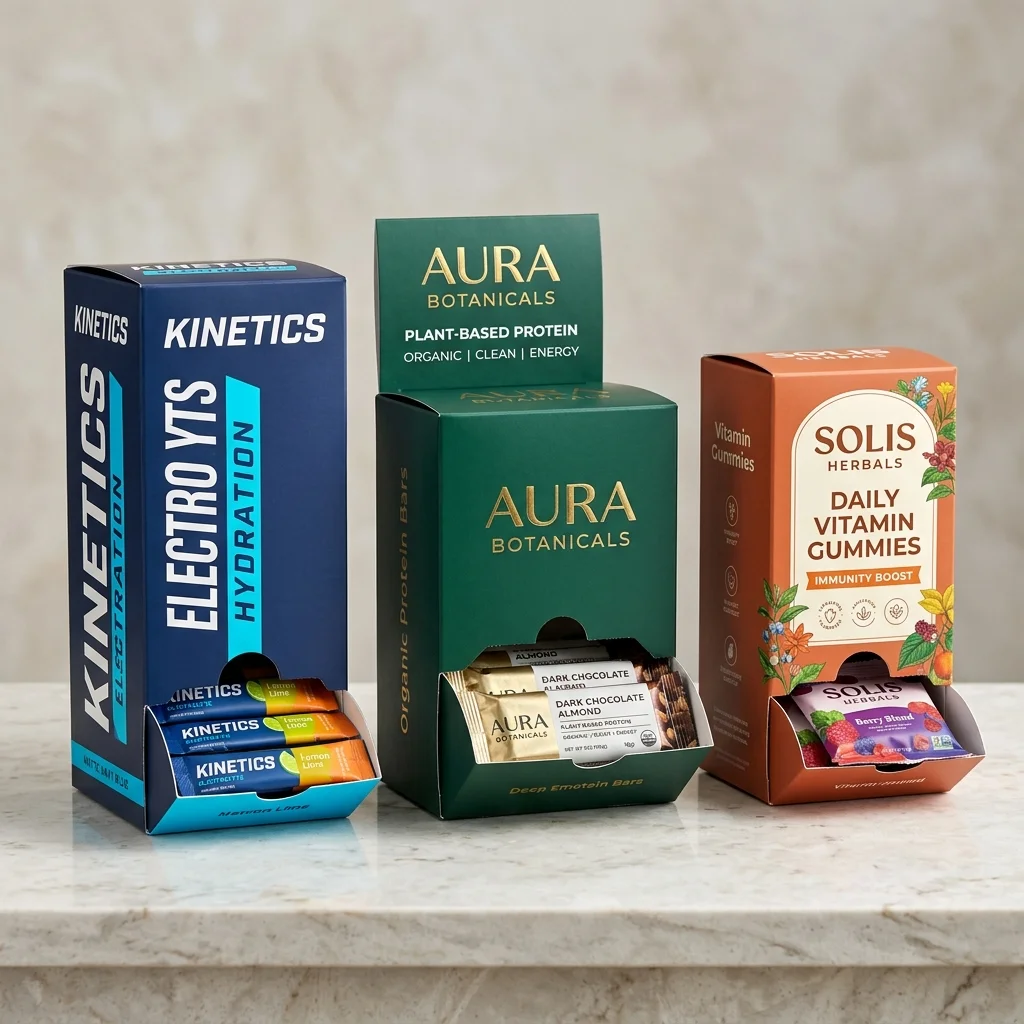

Dispenser Boxes
Folding Cartons Formats
Choose from various structural formats to match your product and branding needs.

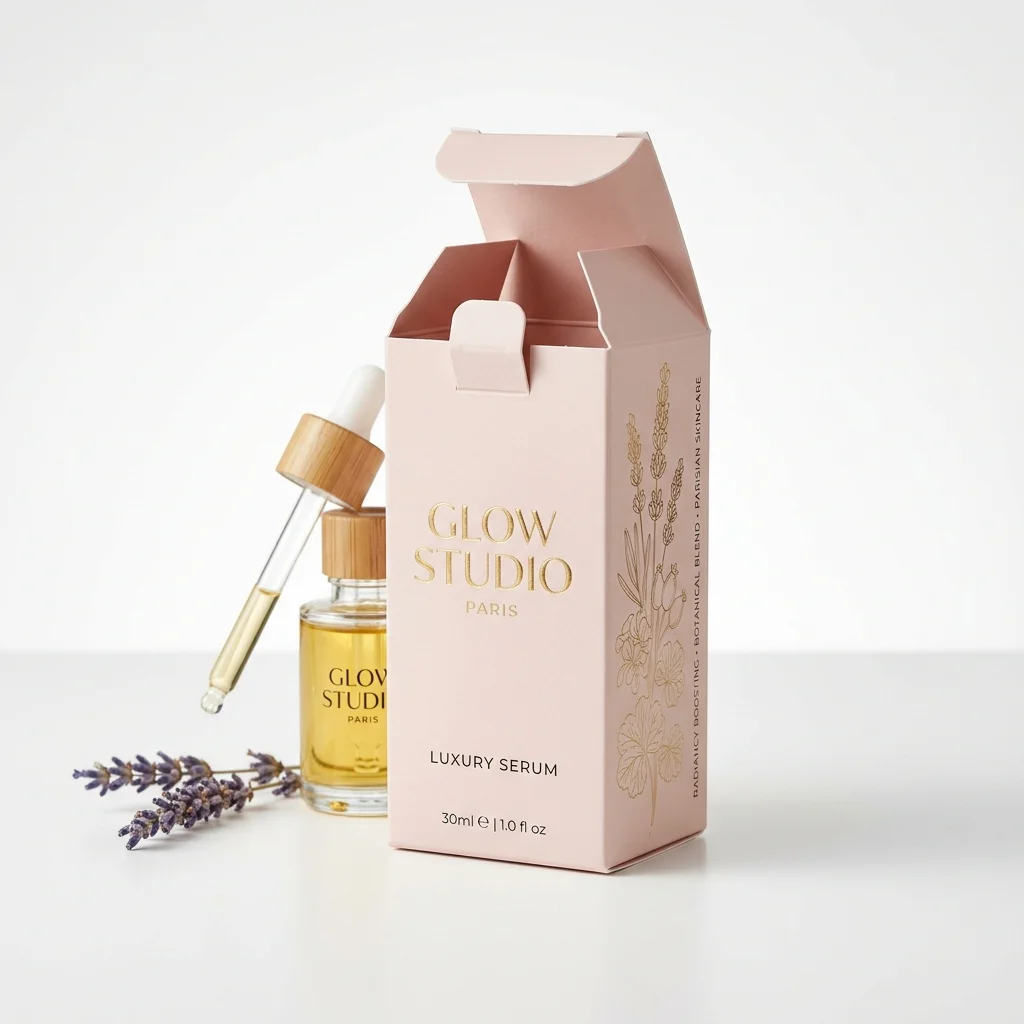

Straight Tuck End
The most common folding carton. Both tuck flaps open from the same end. Fast manual assembly, ideal for cosmetics, supplements, and small consumer goods.

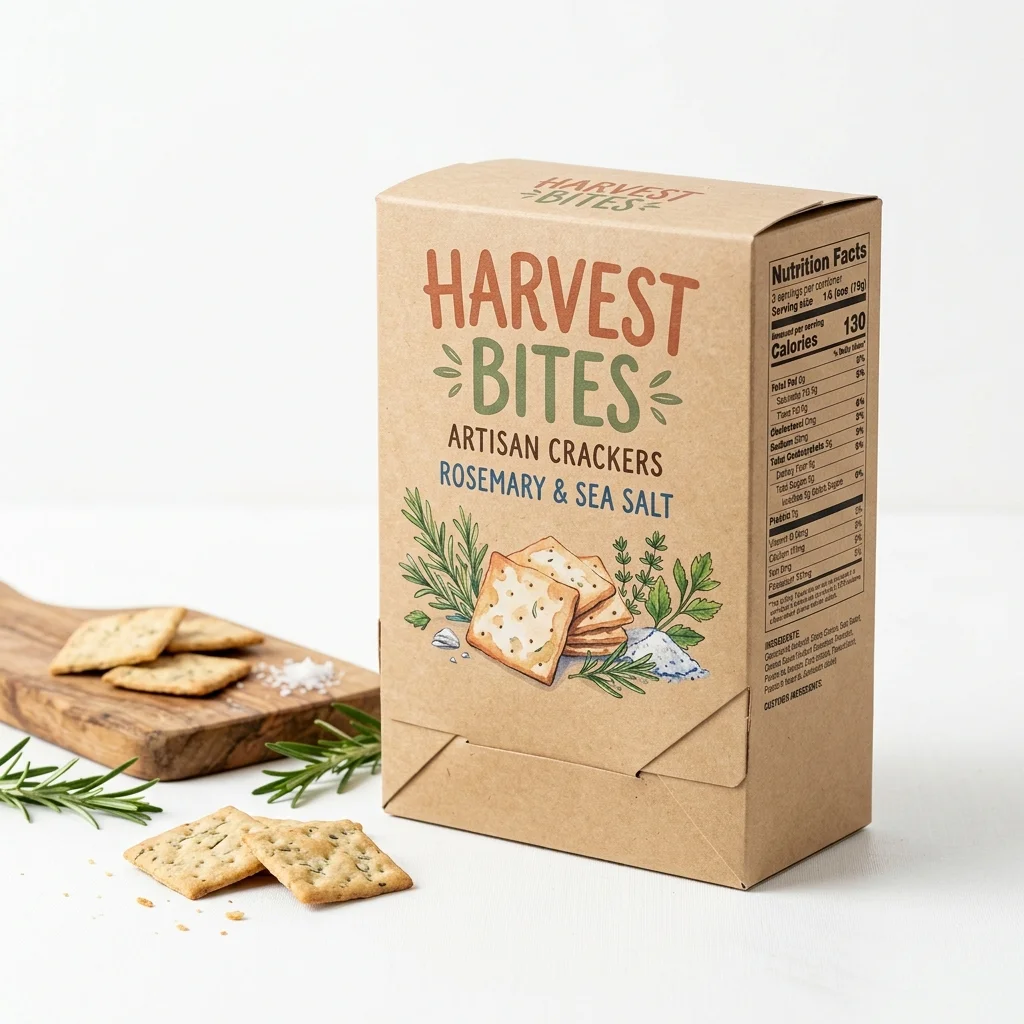

Auto-Bottom Lock
Pre-glued bottom panels snap into place automatically when opened. Eliminates hand assembly and supports heavier products like bottles, jars, and electronics.

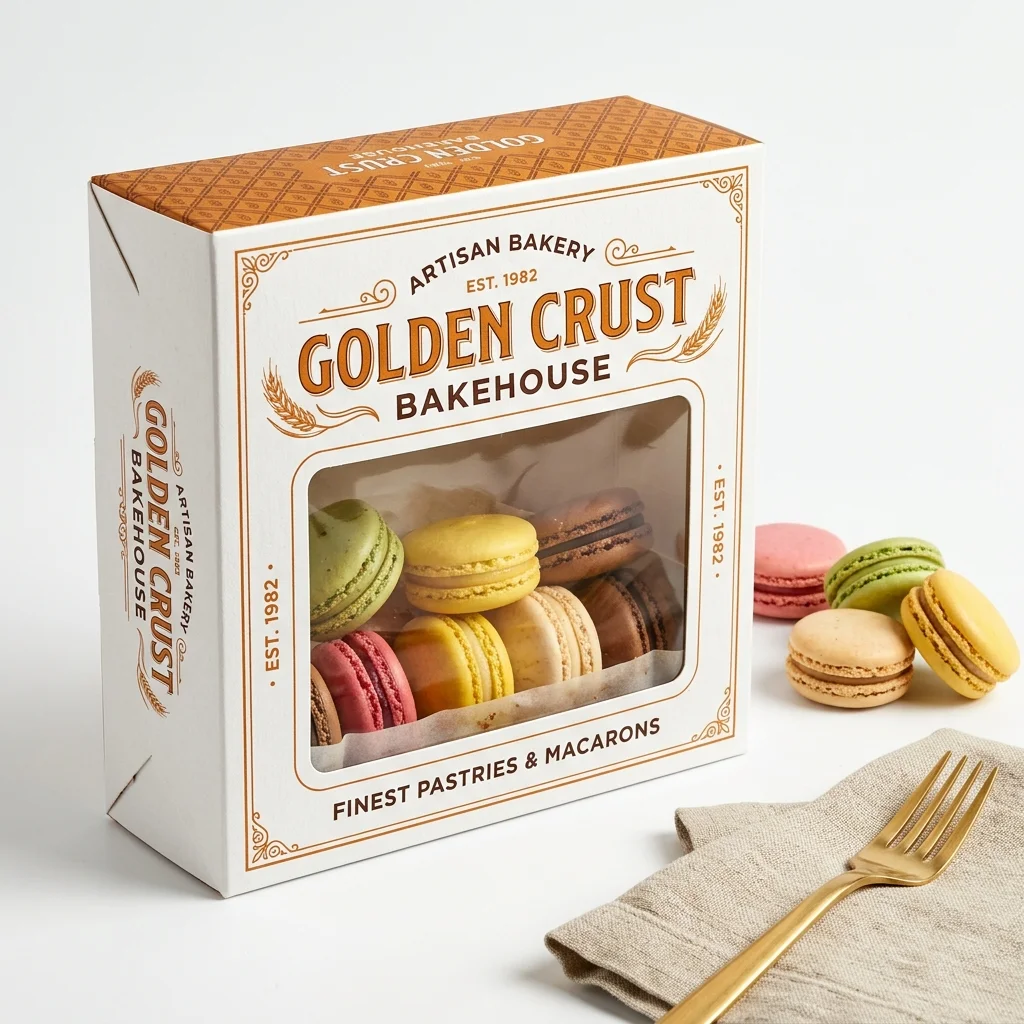

Window Carton
Die-cut window with clear PET or acetate film lets consumers see the product. Perfect for bakery items, cosmetics, and any product where visual appeal drives purchase.

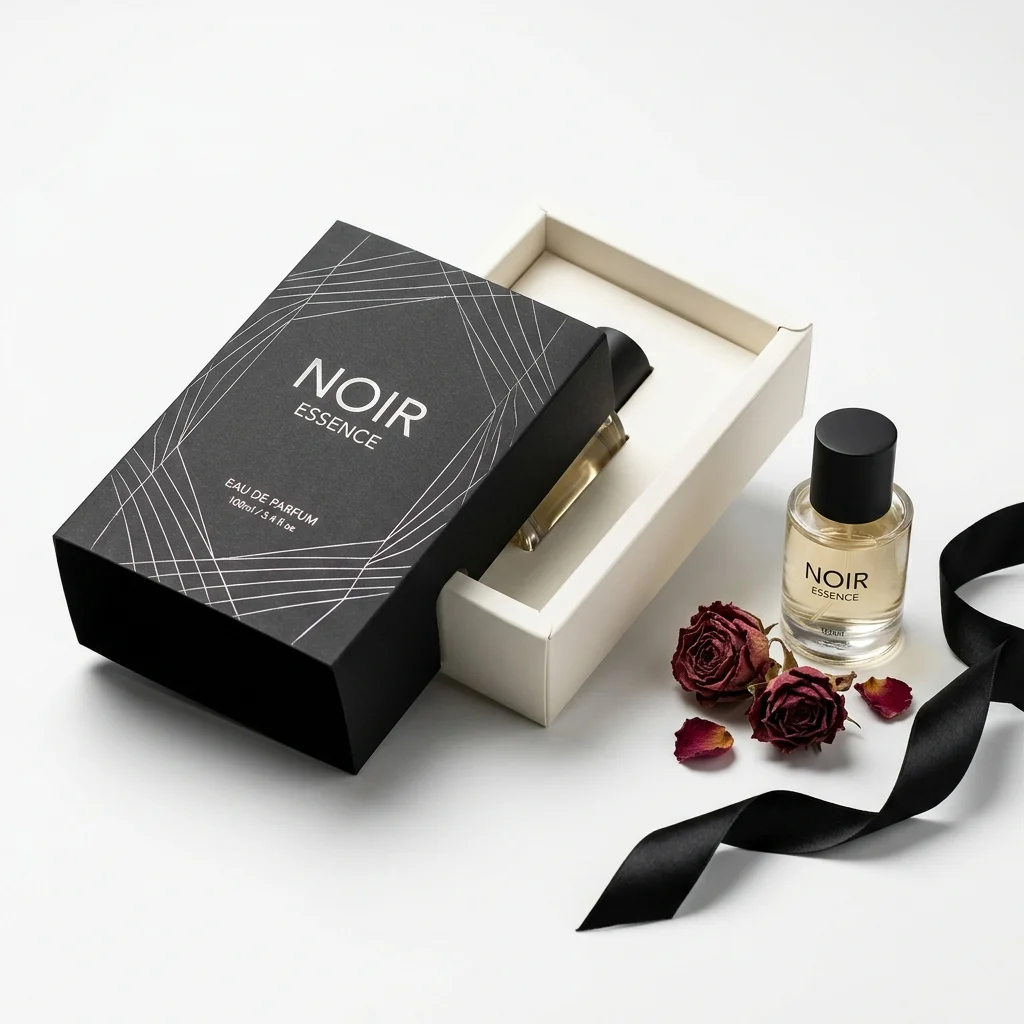

Sleeve & Tray
Two-piece construction with an outer sleeve sliding over an inner tray. Premium unboxing experience for luxury goods, electronics, and gift sets.

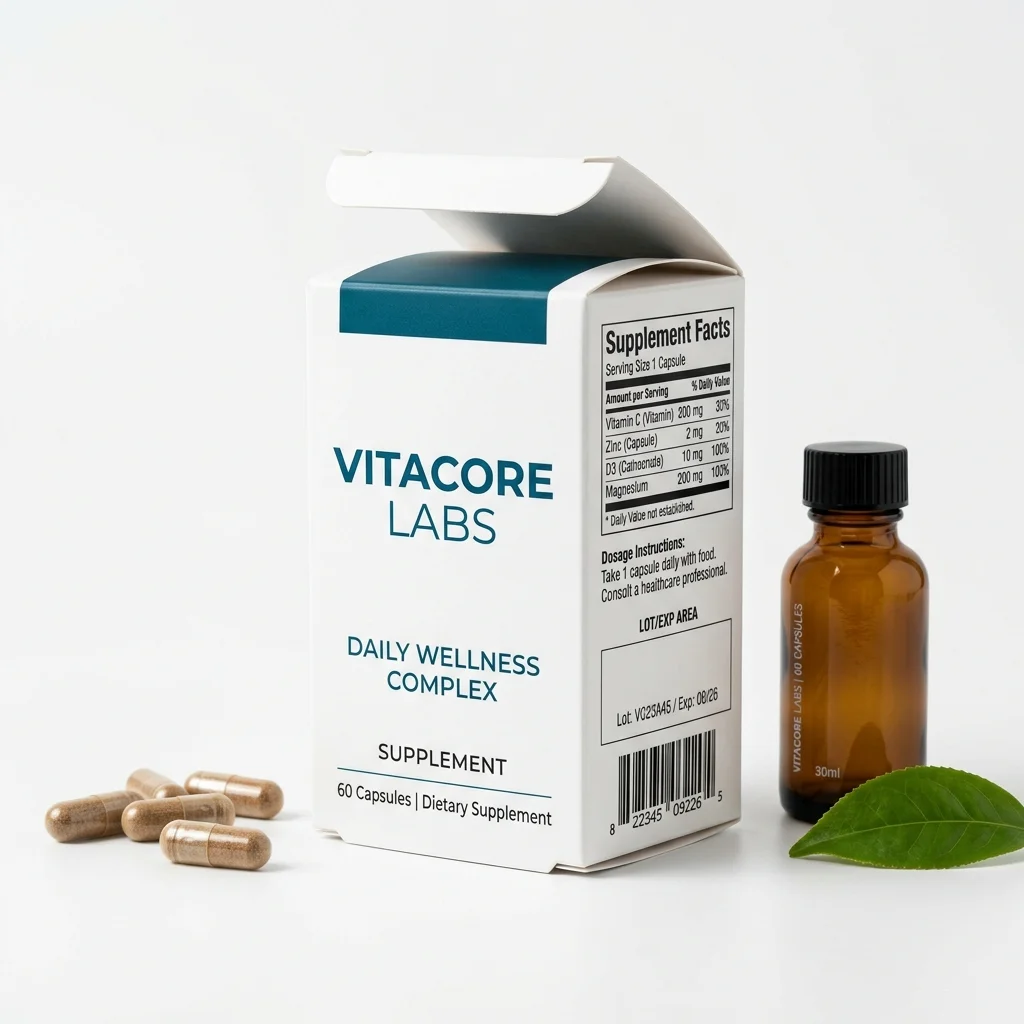

Reverse Tuck End
Tuck flaps open from opposite ends of the carton. Commonly used in pharmaceutical packaging where different ends serve different functions (dispensing vs. closing).

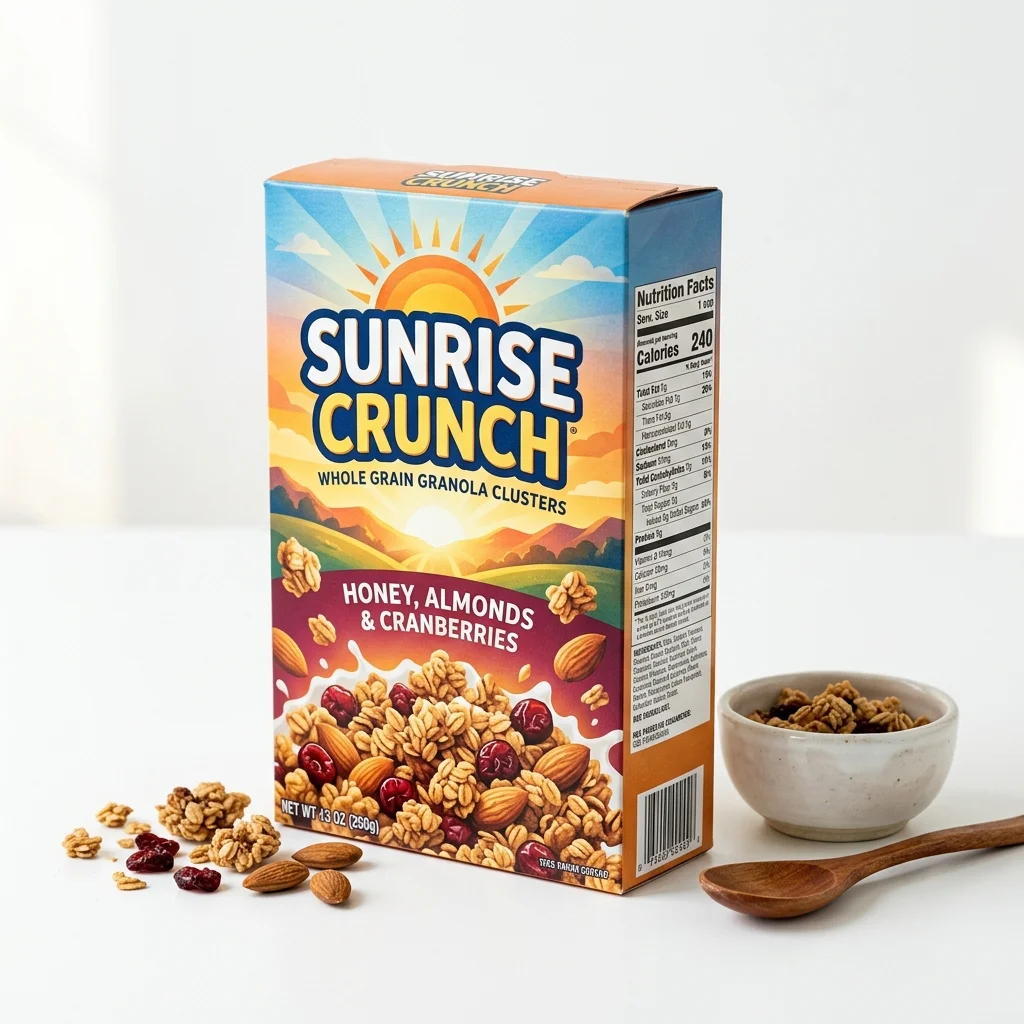

Seal End
Glued closures on both ends for tamper evidence and security. Used for food products, cereals, and any application requiring sealed integrity before first use.
Built With Quality
Detailed view of the materials we use.

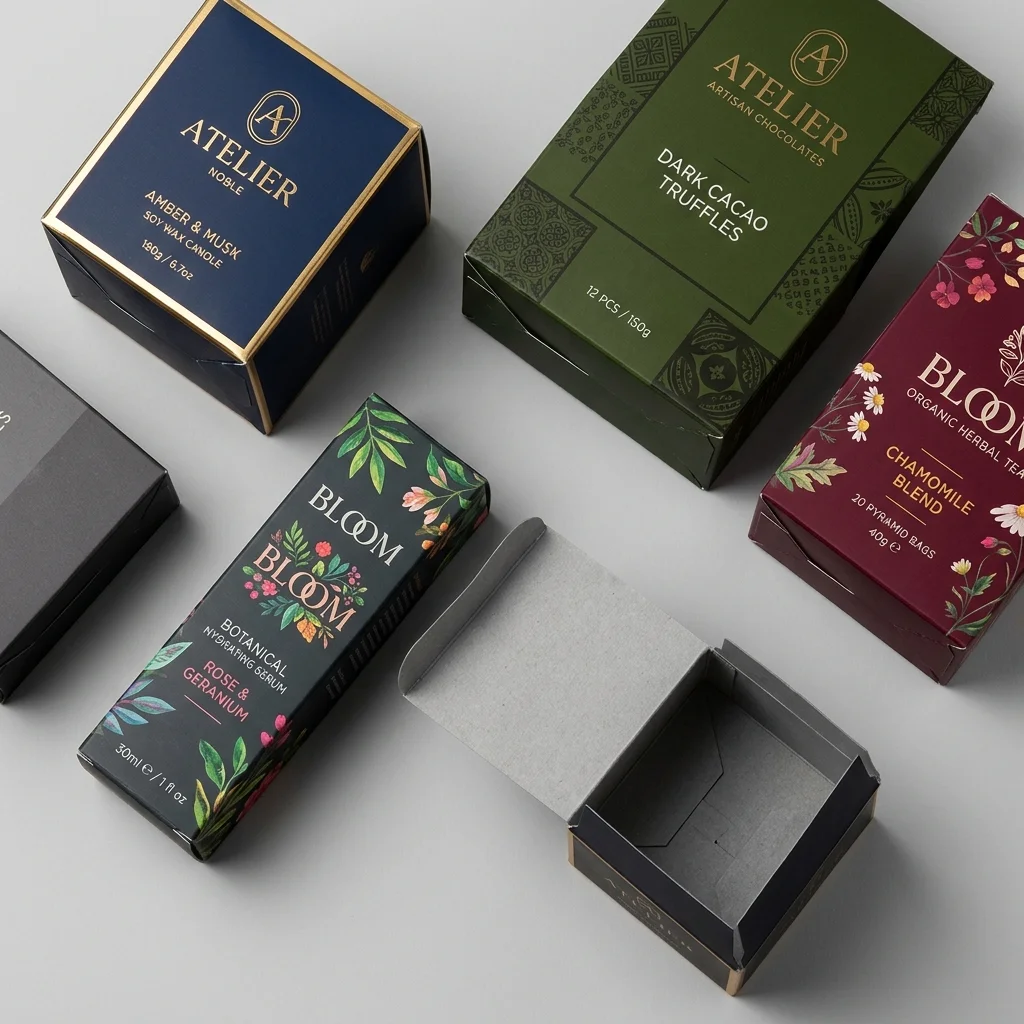

SBS (C1S) - Solid Bleached Sulfate
Premium white paperboard coated on one side for brilliant print reproduction. The industry standard for cosmetics, pharmaceuticals, and food packaging. Excellent folding endurance.

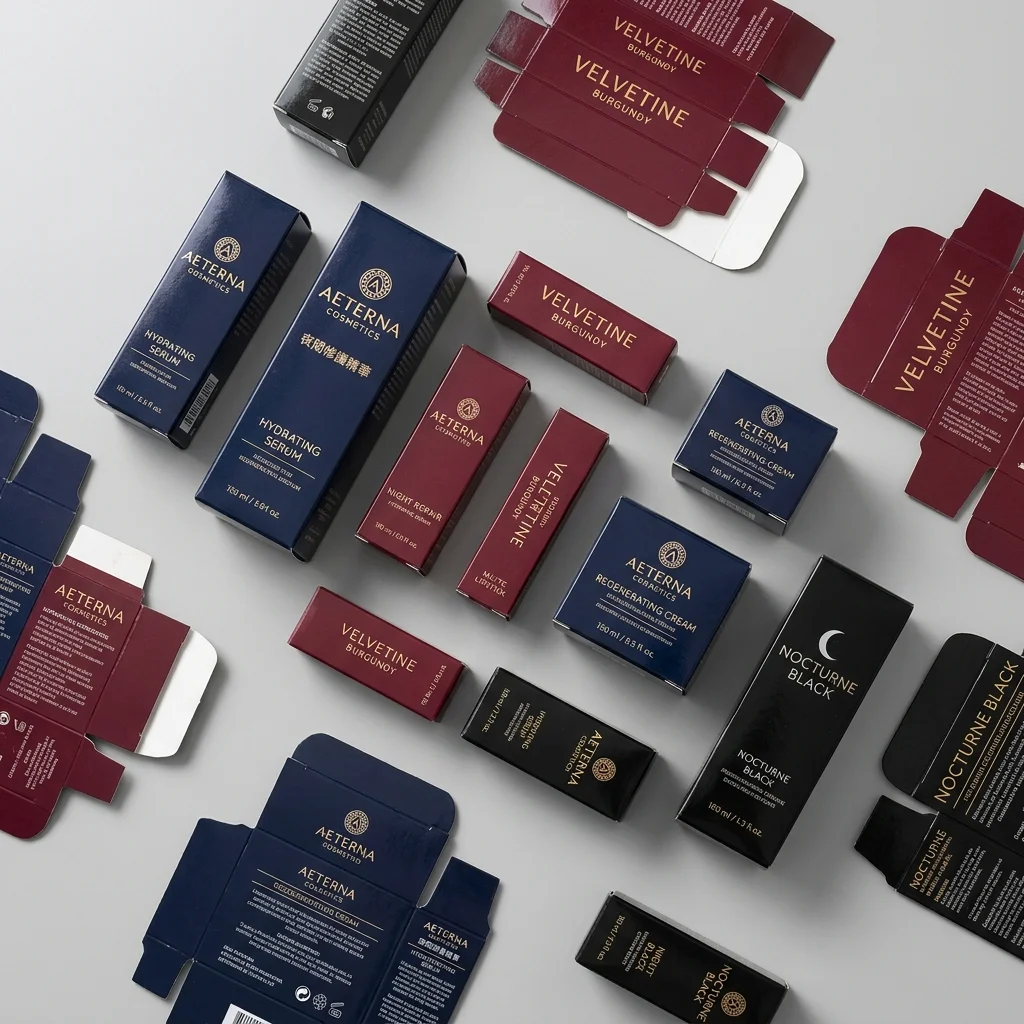

SBS (C2S) - Coated Two Sides
Both sides coated for applications where interior printing matters — luxury unboxing with printed inner surfaces, dual-use instructions, or premium gift packaging.

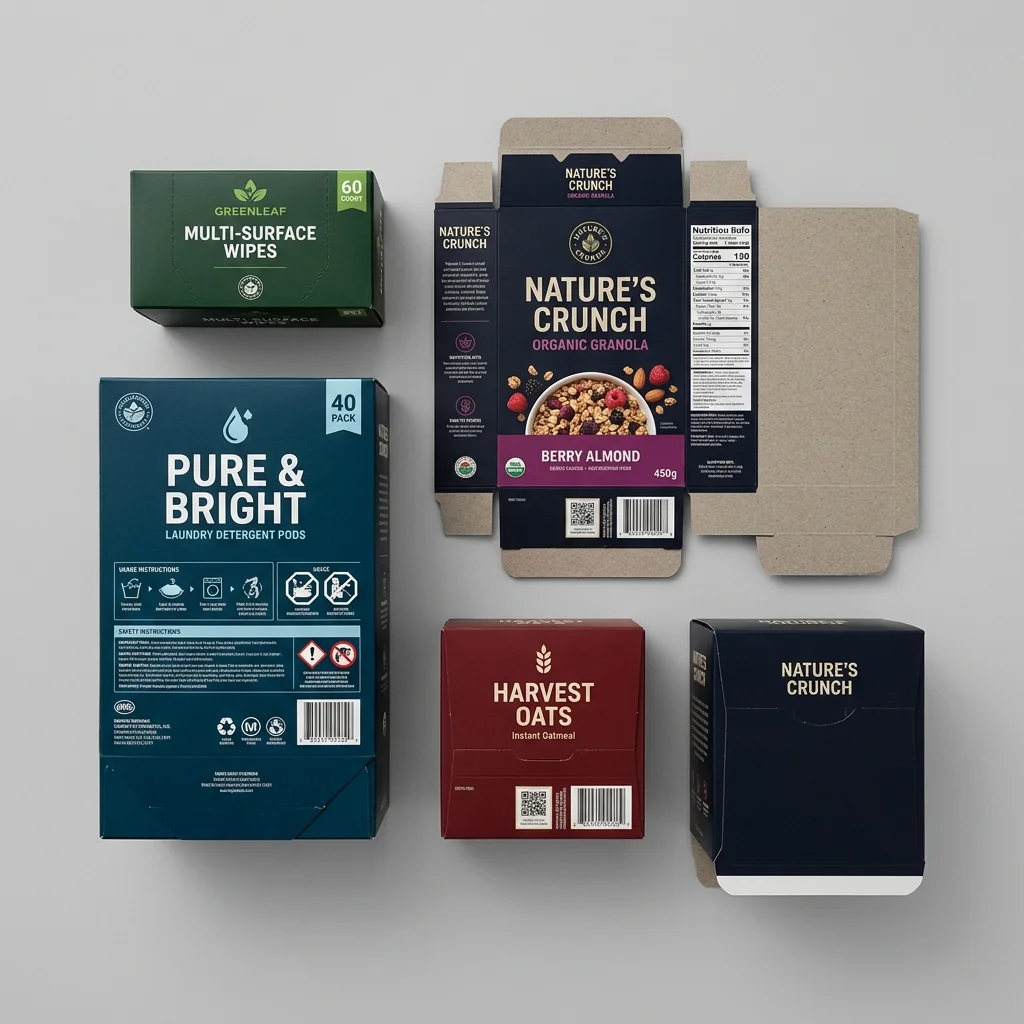

CCNB - Clay Coated News Back
White-coated front with gray recycled fiber back. Cost-effective for consumer goods where interior appearance is secondary. Food-safe options available.

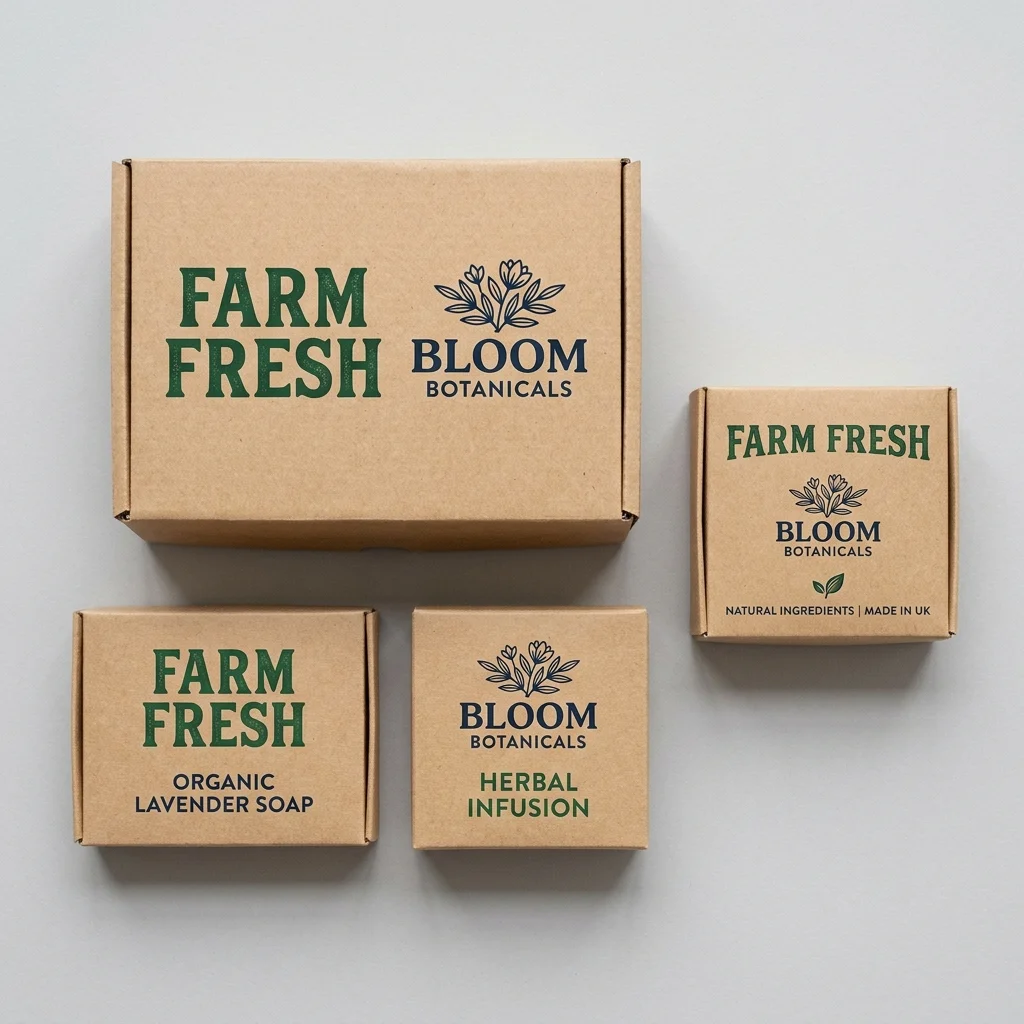

Kraft Paperboard
Natural brown paperboard offering rustic, eco-conscious aesthetics. Strong fiber construction. Popular for organic food, artisan brands, and sustainable packaging.

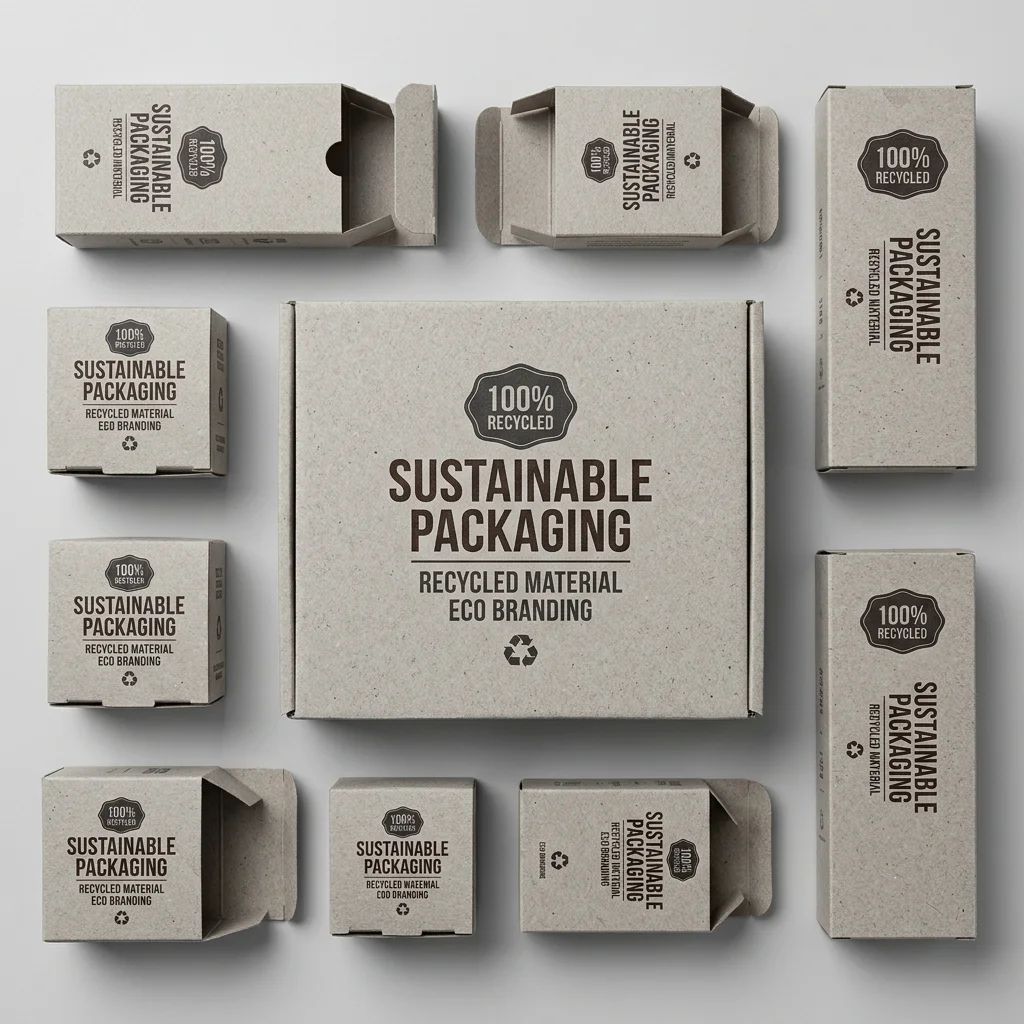

Recycled Paperboard
100% post-consumer recycled content with FSC certification. Meets sustainability mandates while maintaining structural and printability requirements.
Printing & Finishing
Premium print methods and finishing options to make your packaging stand out.

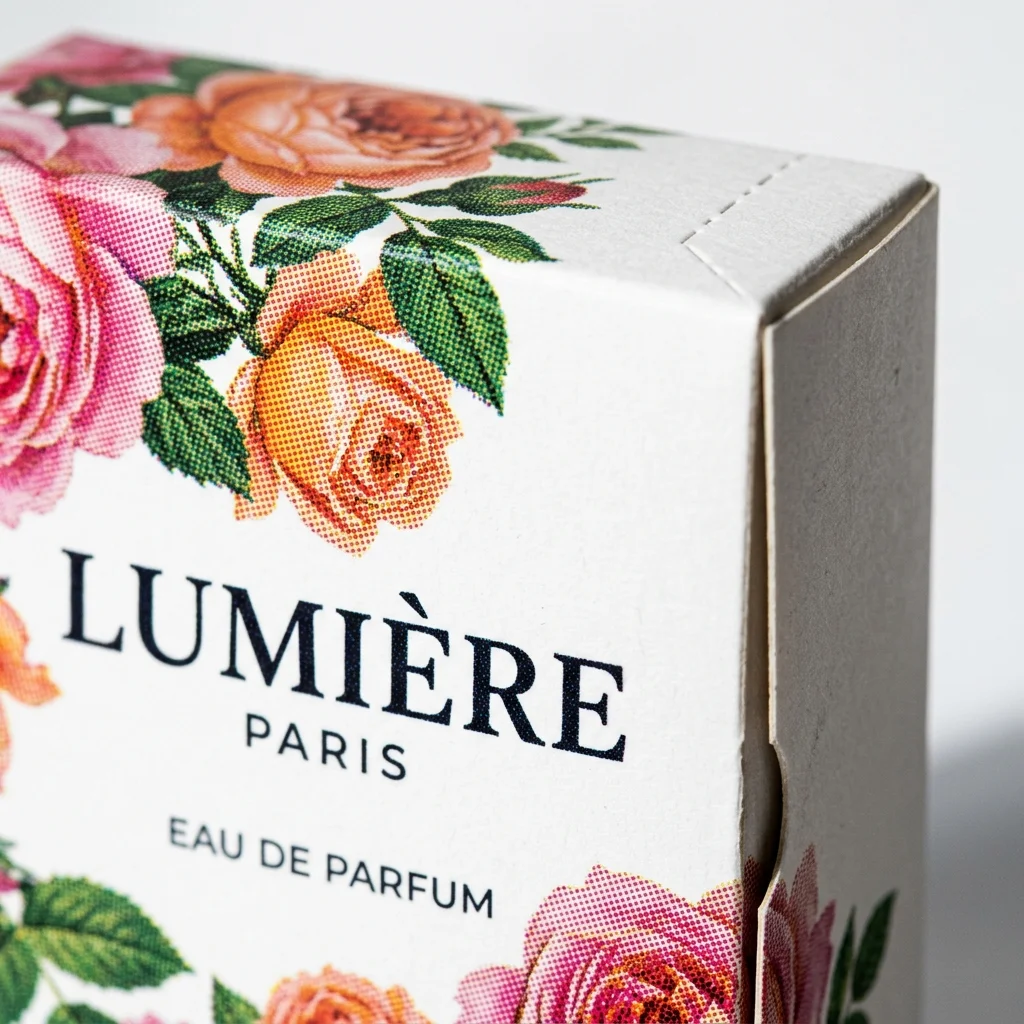

CMYK Offset Lithography
The gold standard for folding cartons. Wet-offset printing produces photo-realistic quality with precise dot reproduction on coated SBS. Ideal for 2,000+ unit runs with up to 8 process colors.

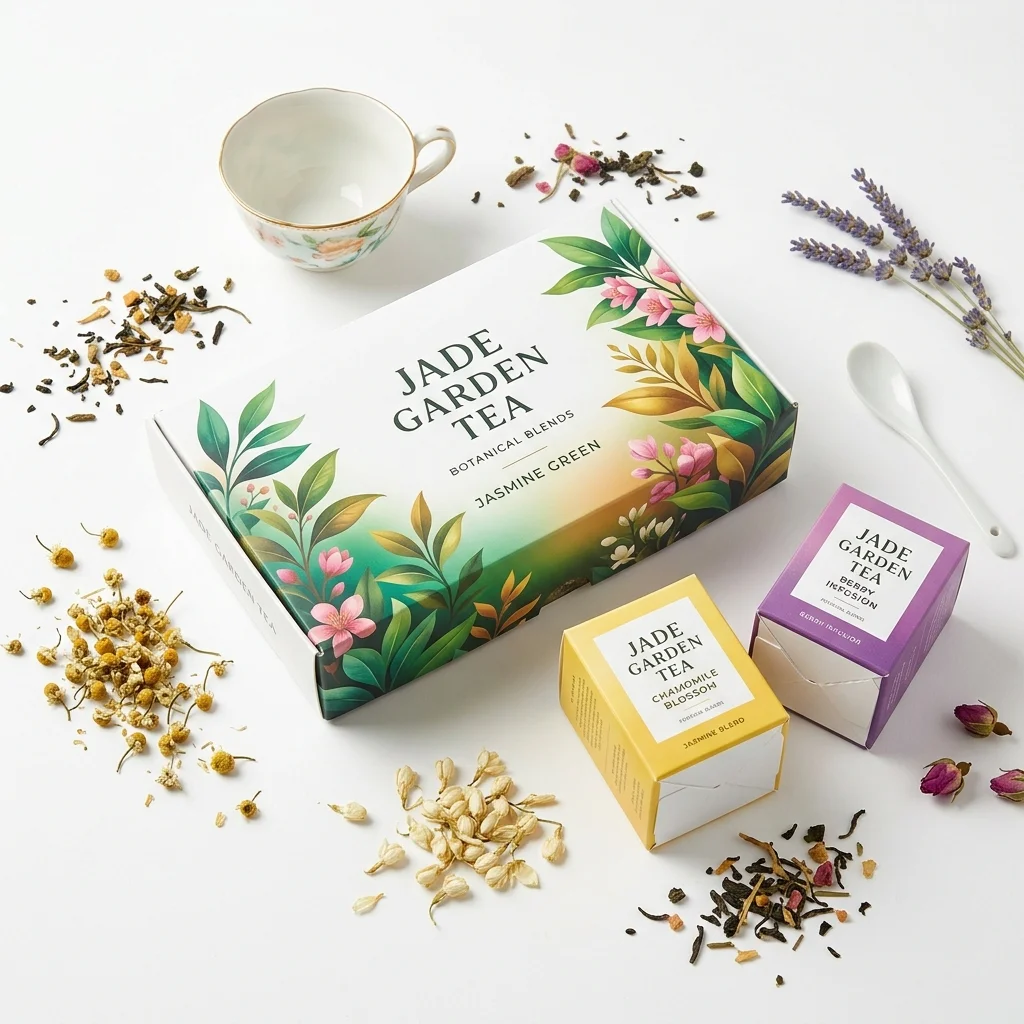

Digital Printing
HP Indigo or similar digital presses enable zero plate costs, variable data, and runs from 1 to 5,000 units economically. Perfect for short runs, prototyping, and personalized packaging.

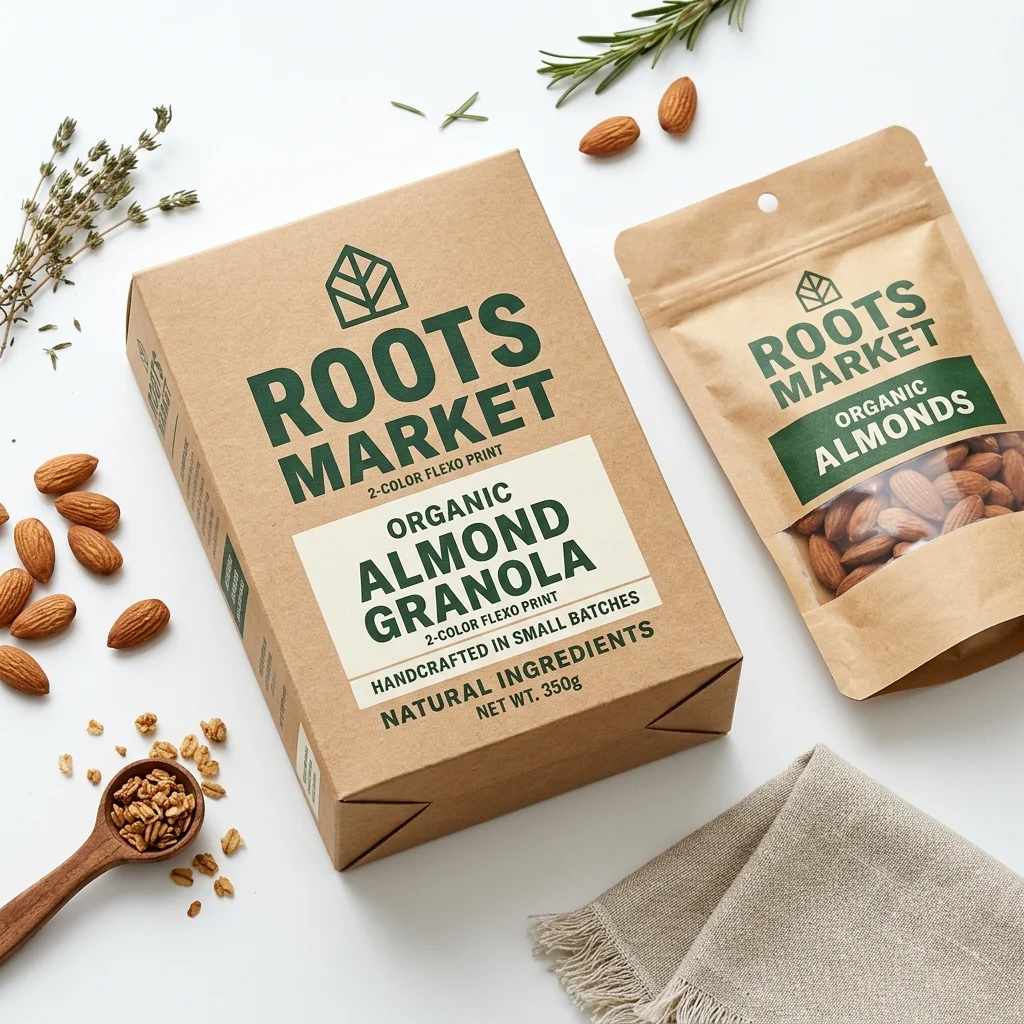

Flexographic Printing
Cost-effective for high-volume runs using flexible photopolymer plates. 1-6 spot colors with improving quality. Best for simple bold designs on kraft and uncoated substrates.

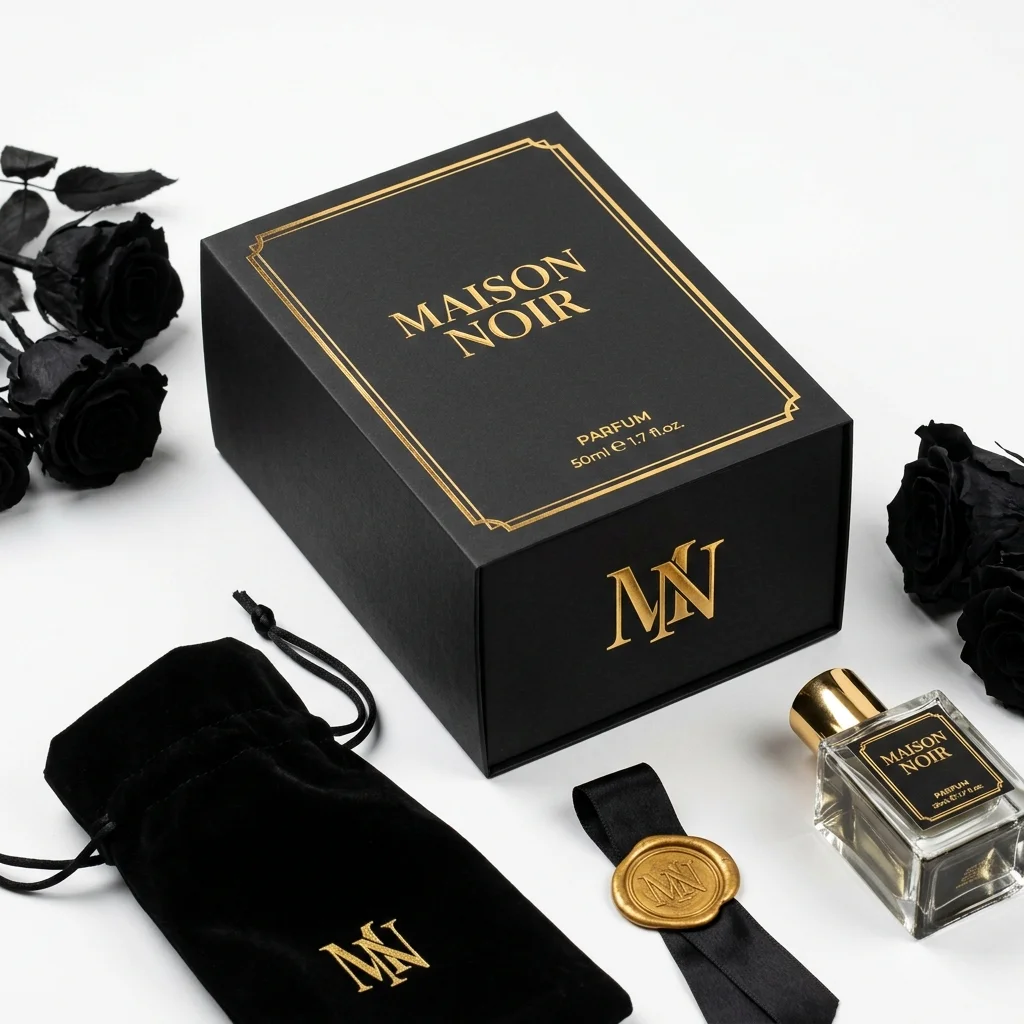

Hot Foil Stamping
Metallic or holographic foil applied with heated die for brilliant reflective accents. Gold, silver, copper, and custom colors available. Creates luxury brand perception.

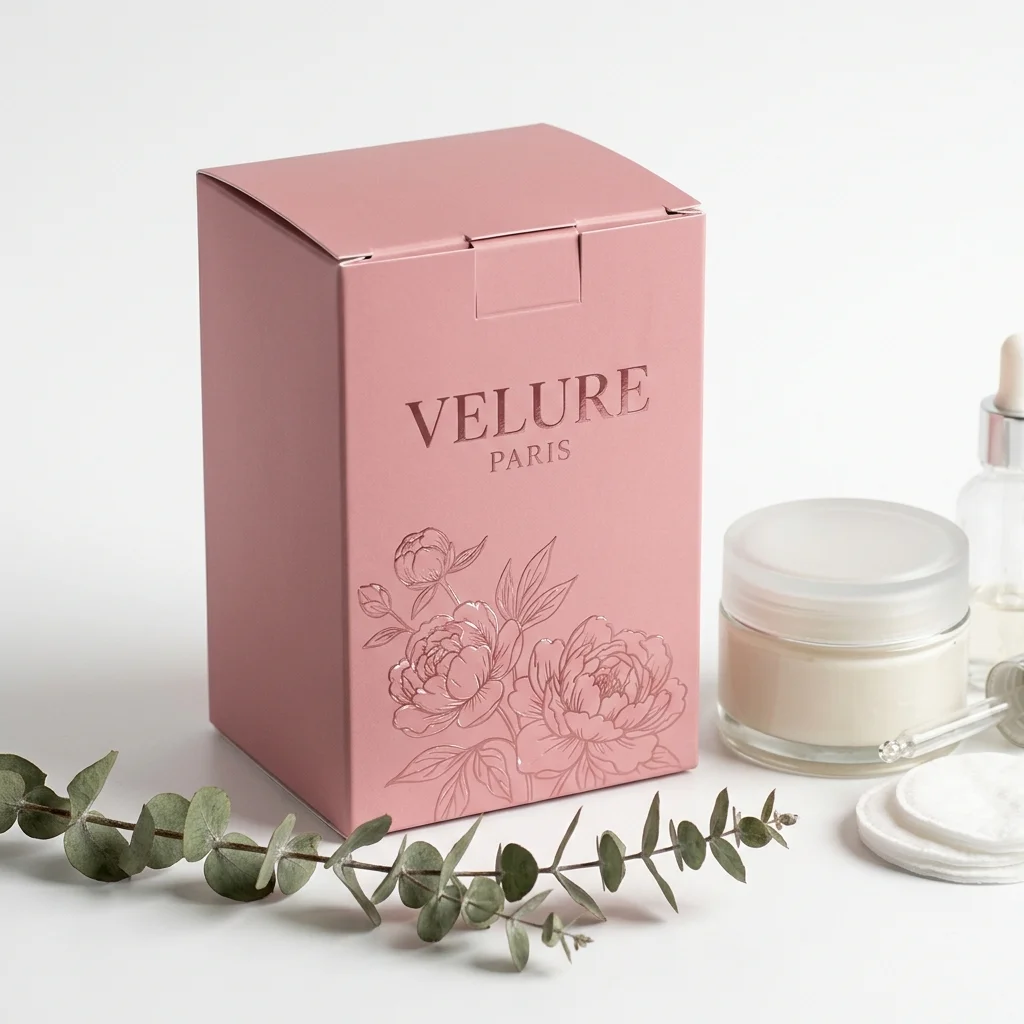

Spot UV Varnish
Selective high-gloss UV coating applied to specific design elements. Creates dramatic contrast against matte or soft-touch surfaces. Ideal for logos and accent areas.

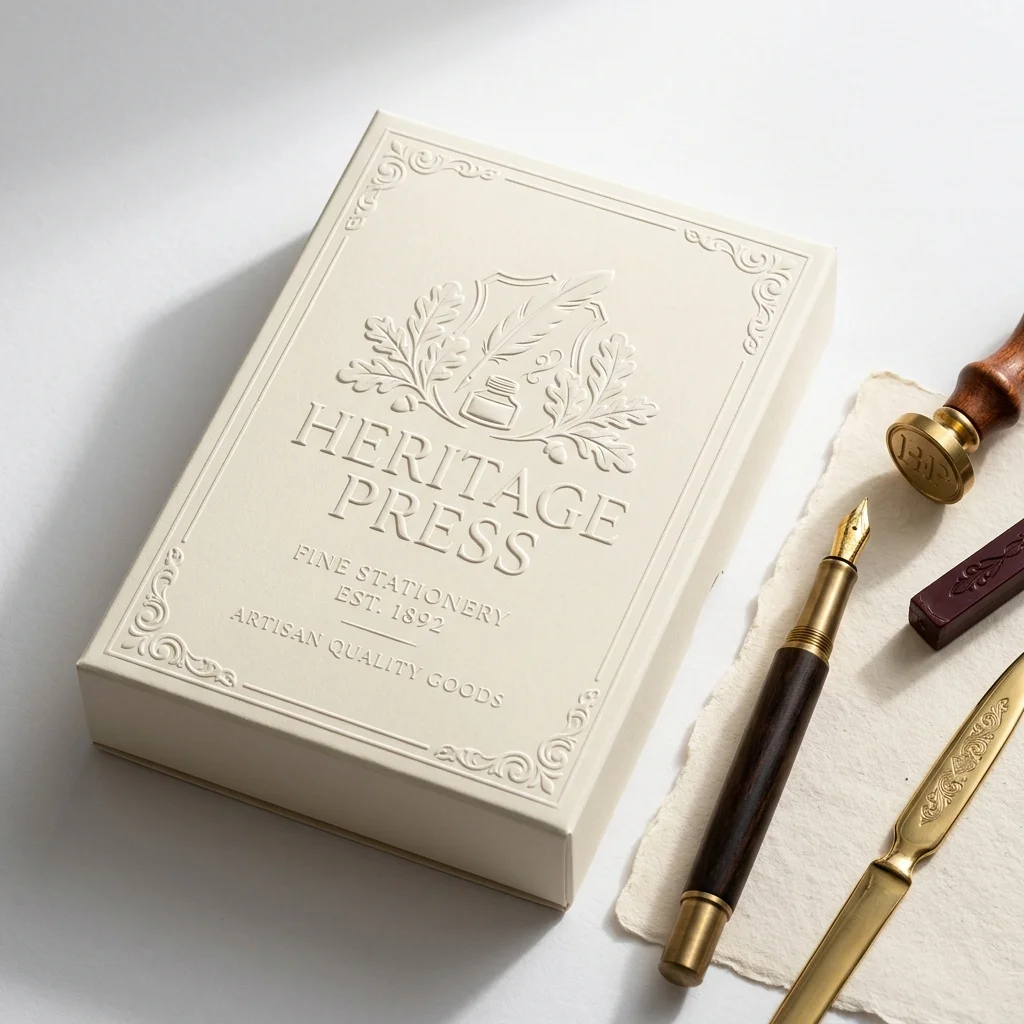

Embossing / Debossing
Raised or recessed 3D relief patterns created with matched male/female dies. Adds tactile dimension to logos, text, and decorative elements. Often combined with foil.

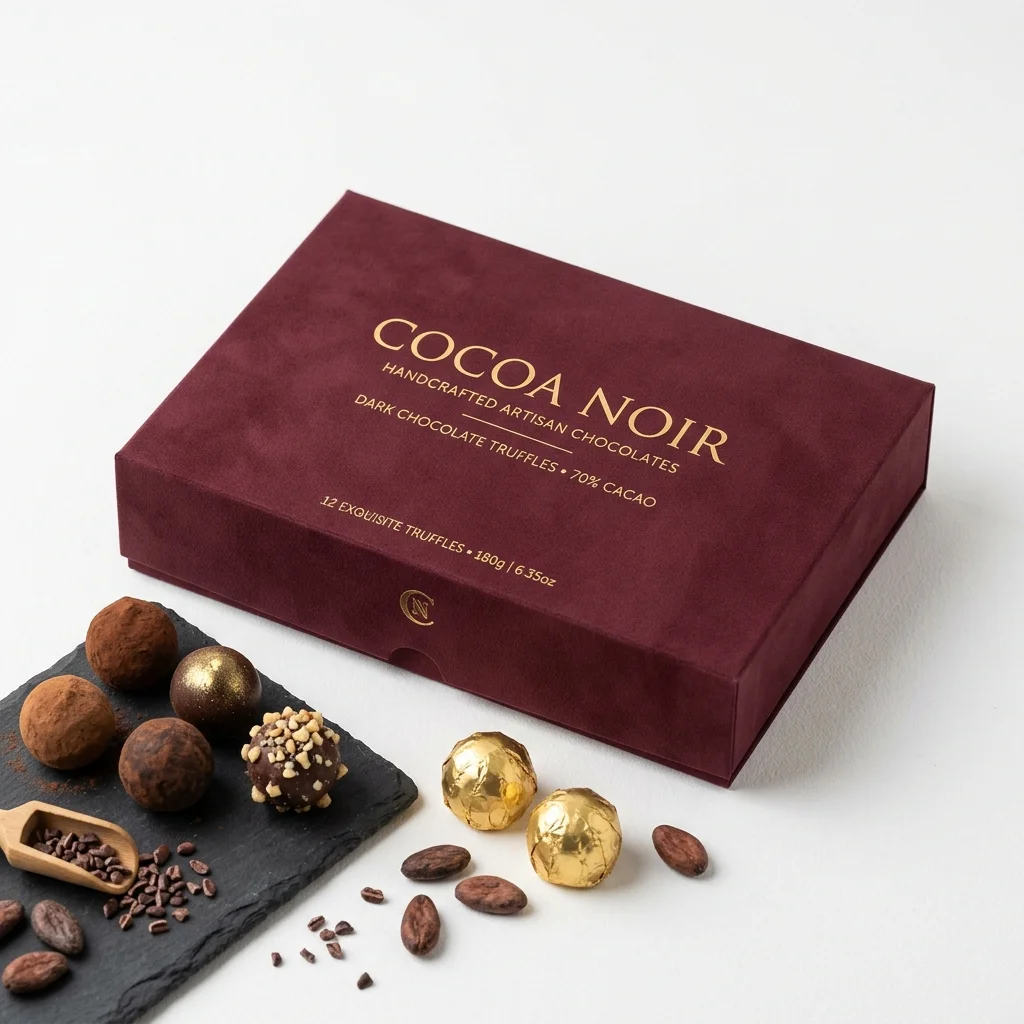

Soft-Touch Lamination
Velvet-like matte coating that transforms paperboard into a luxury tactile experience. Provides scuff resistance while creating premium perceived value.

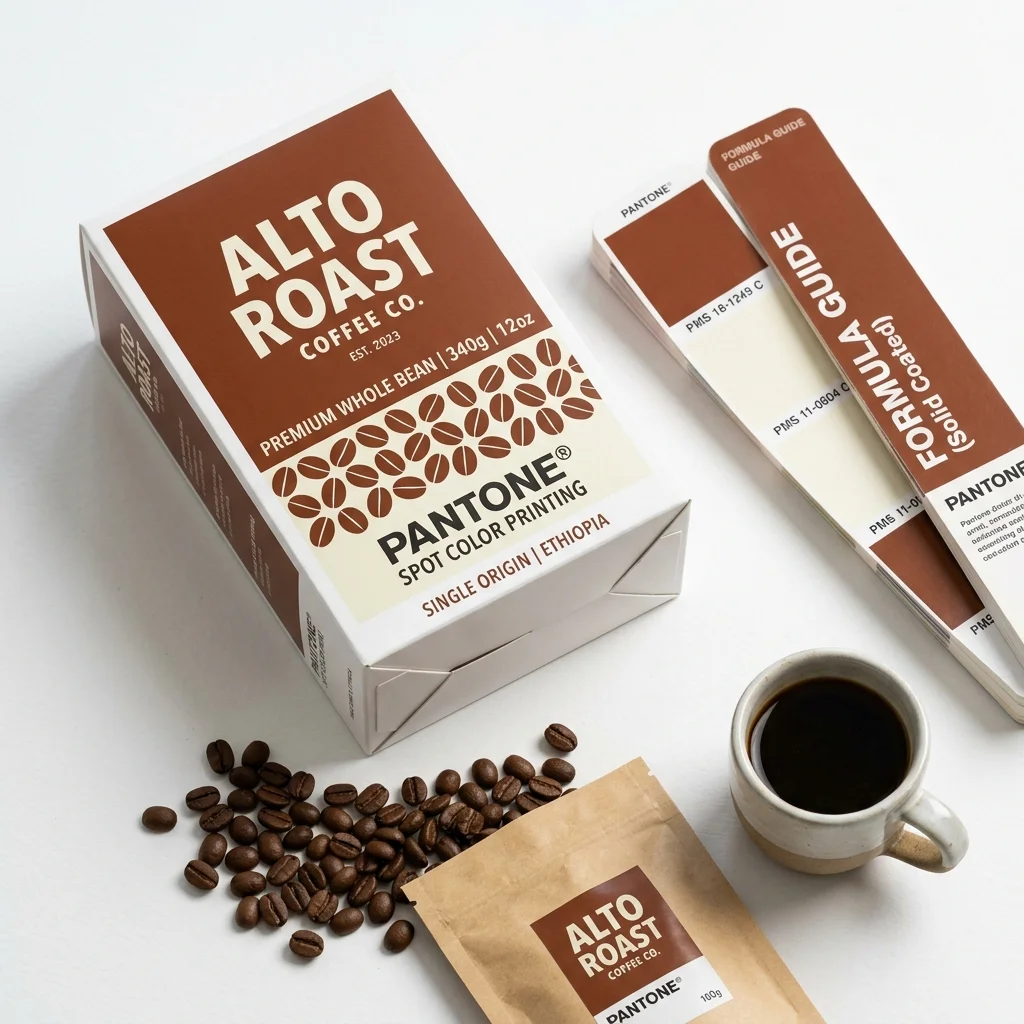

Pantone Spot Colors
Exact PMS color matching for brand-critical applications. Dense, opaque ink coverage ensures absolute brand consistency across production runs and packaging types.
Unlimited Customization
Every inch of your packaging can be customized to match your brand.

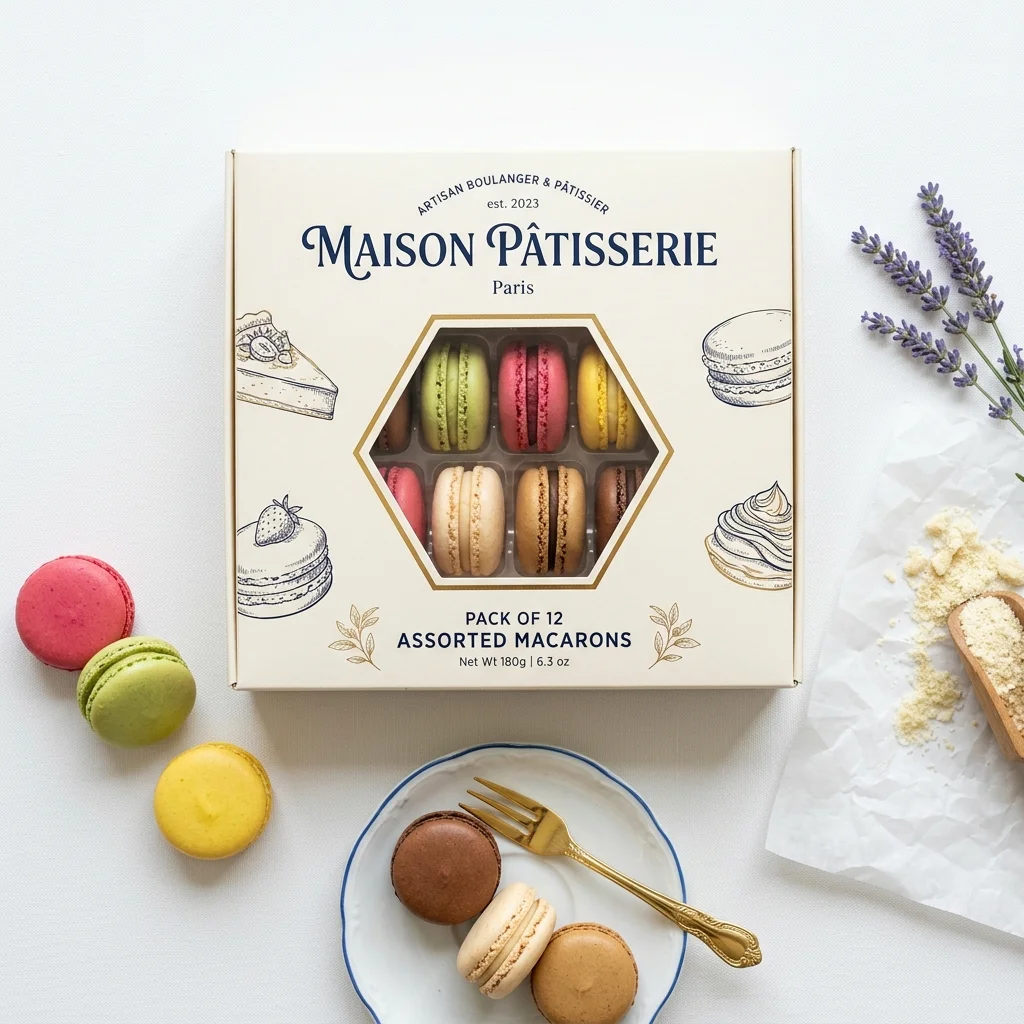

Custom Die-Cut Windows
Unique window shapes (hexagonal, circular, star, custom silhouette) with clear PET or acetate film. Product visibility drives retail purchase decisions.

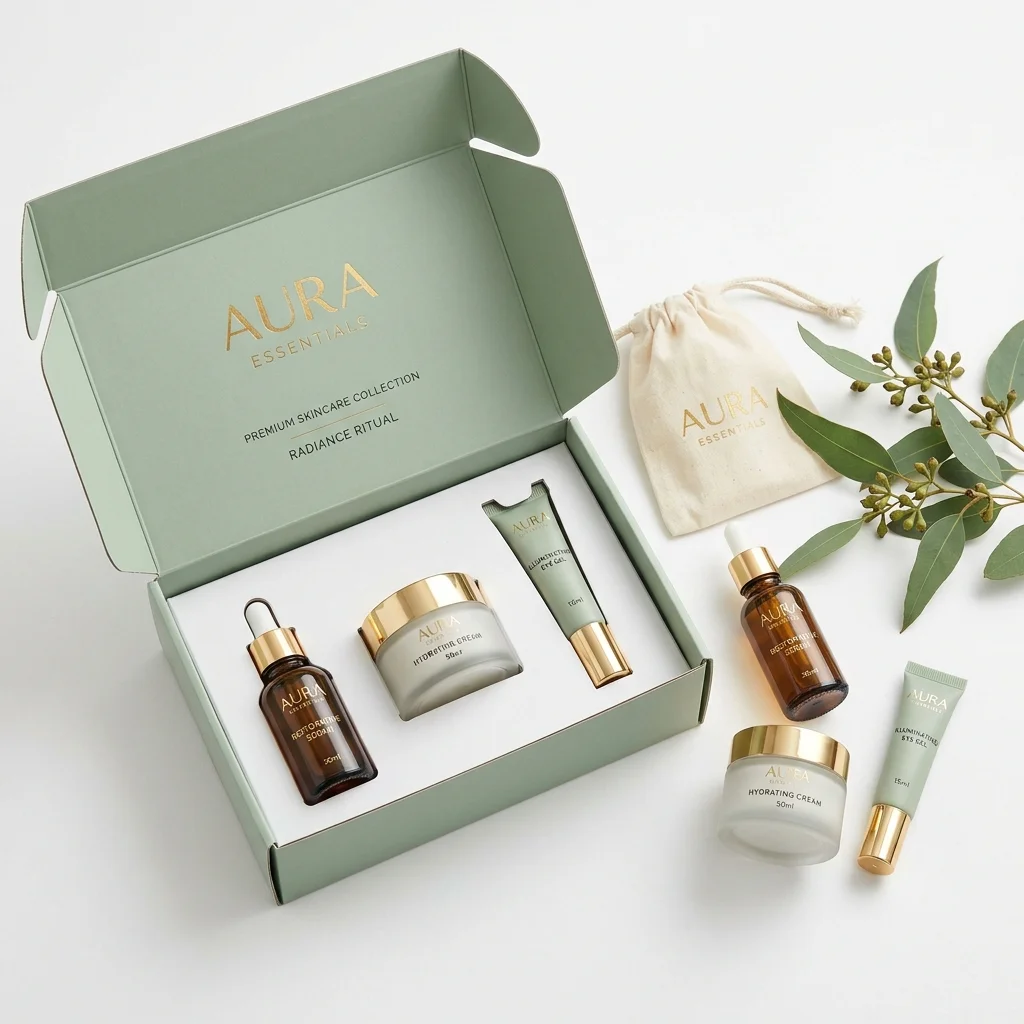

Custom Inserts & Fitments
Paperboard or corrugated inserts precision-cut to cradle your product. Prevents movement during shipping and creates a premium unboxing reveal.

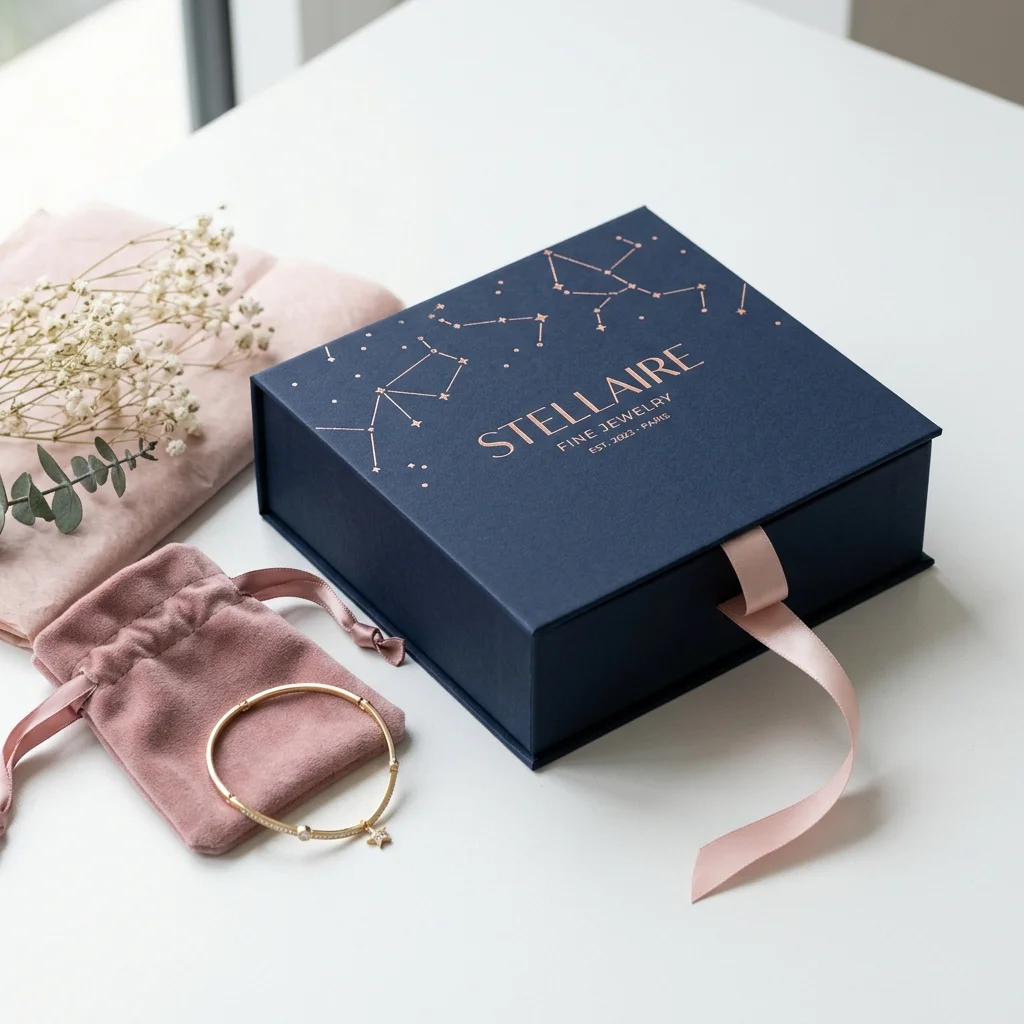

Ribbon Pull & Tabs
Satin ribbon pulls, finger lift tabs, and thumb notches for premium opening experiences. Transforms functional packaging into a luxury brand moment.

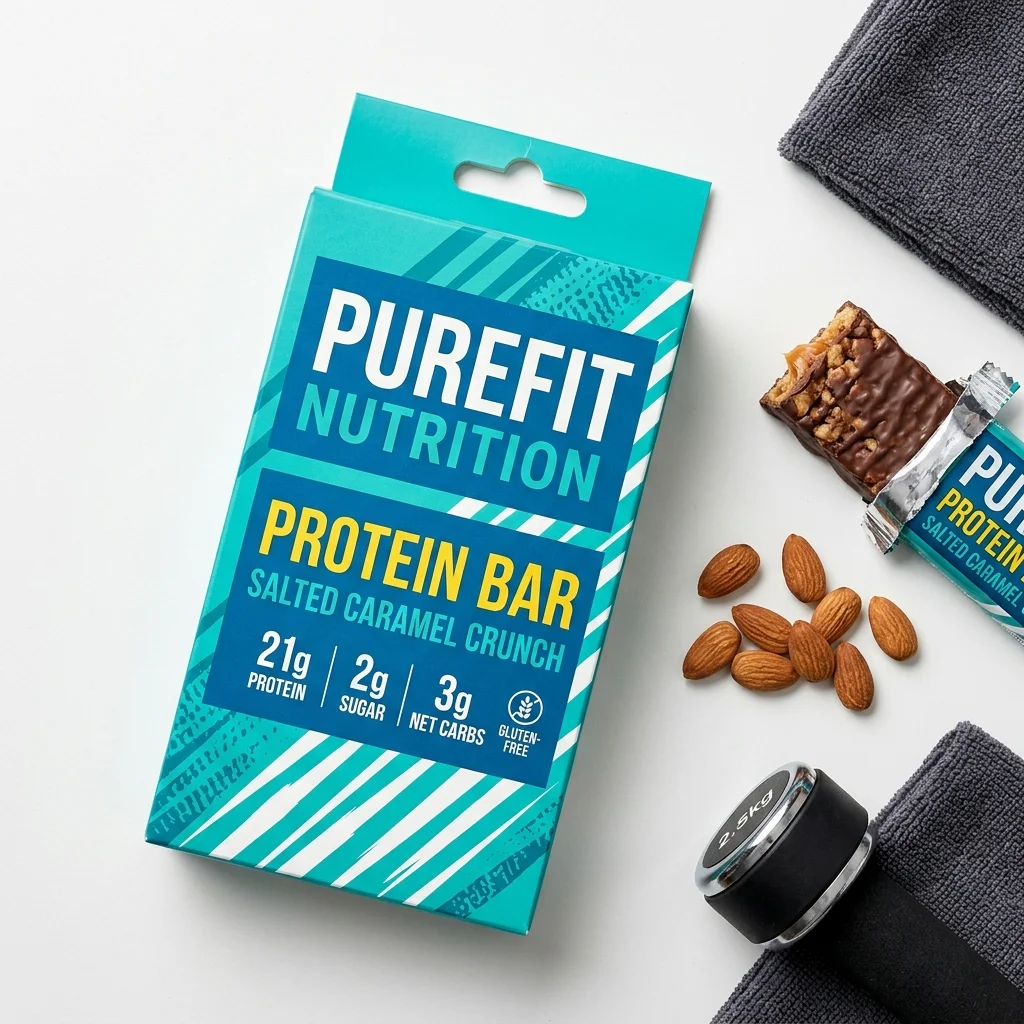

Euro-Slot Hang Tabs
Integrated die-cut hang holes or adhesive hang tabs for pegboard retail display. Eliminates need for separate display fixtures.

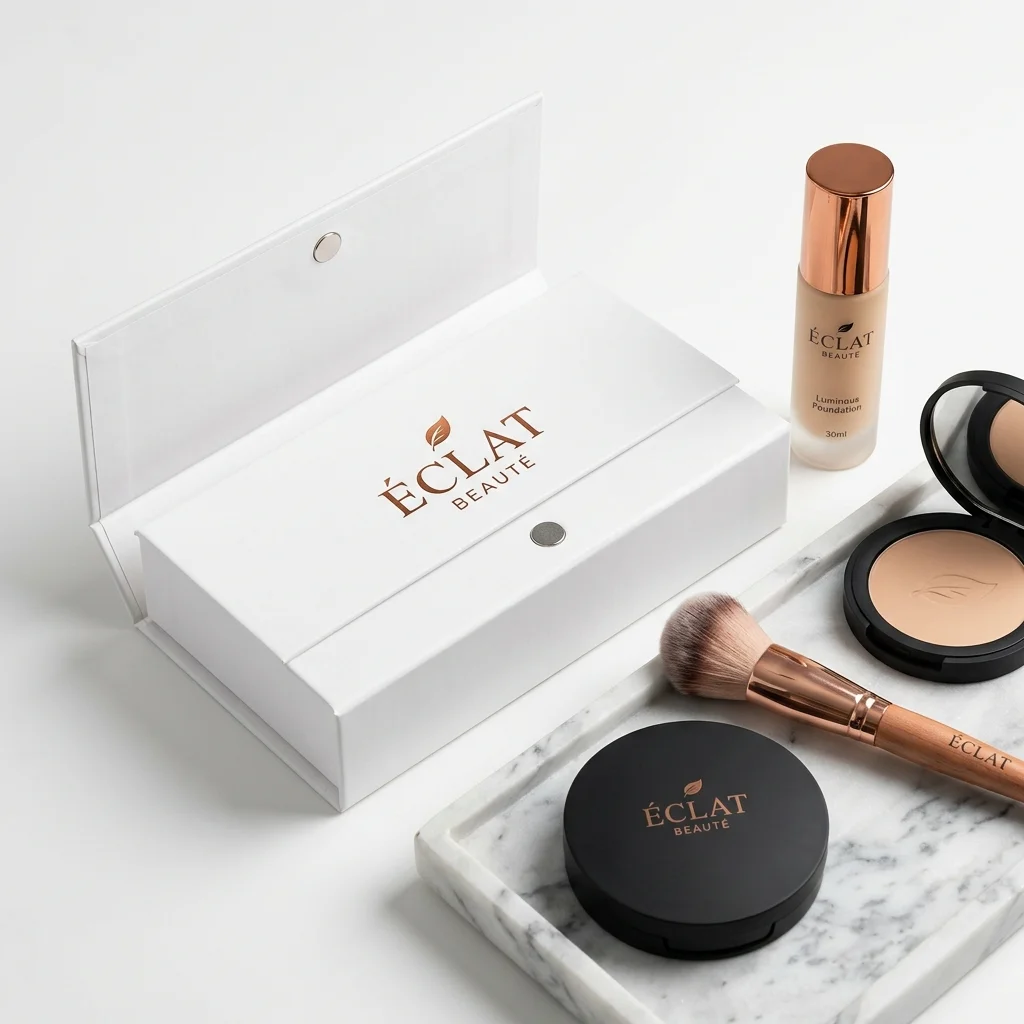

Magnetic Closures
Hidden magnets embedded in flap for satisfying snap closure. Premium option for luxury cosmetics, jewelry, and high-end consumer electronics.

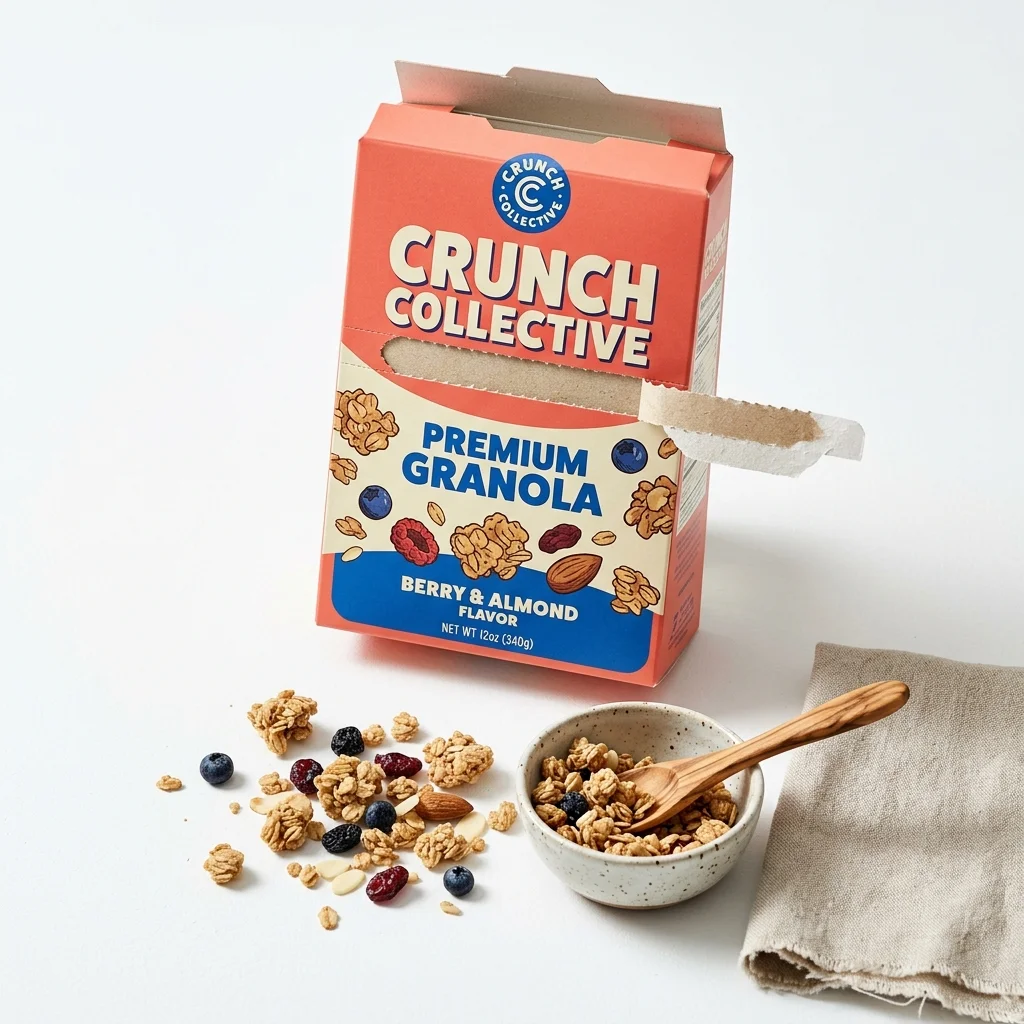

Perforated Tear Strips
Pre-scored tear lines for easy consumer opening. Tamper-evident and user-friendly. Required for many food and pharmaceutical applications.
From Idea to Impact
Get your custom packaging in 4 easy steps.
Choose Box Style & Dimensions
Select from 6 structural formats (tuck end, auto-bottom, window, sleeve, reverse tuck, seal end) and specify exact dimensions for your product. Our structural engineers optimize for material efficiency and automated packing.
Select Material & Printing
Pick your paperboard substrate (SBS, CCNB, kraft), printing method, and finishing treatments. Upload your artwork or use our design templates to create production-ready files.
Proof & Prototype
Receive digital proofs for color accuracy review. For complex structures, we produce physical prototypes on actual substrate for fit testing and stakeholder approval before committing to production.
Production & Delivery
Die-cutting, printing, finishing, folding, and gluing executed on high-speed automated lines. Quality checks at every stage. Cartons shipped flat for efficient freight. Standard lead time: 10-14 business days.
Key Features & Benefits
Everything you need for premium custom packaging.
Premium Paperboard Substrates
Choose from SBS (Solid Bleached Sulfate) for brilliance, CCNB for cost efficiency, or kraft for natural aesthetics — each graded for caliper, stiffness, and printability.
Full-Spectrum Printing
Offset lithography, digital CMYK, flexographic, and Pantone spot colors with embellishments including foil stamping, embossing, spot UV, and soft-touch lamination.
6+ Structural Formats
Straight tuck, reverse tuck, auto-bottom, sleeve, window, and seal-end constructions engineered for product fit, shelf display, and automated packing lines.
FDA & Food-Grade Compliant
Food-contact approved substrates with water-based coatings, tamper-evident closures, and child-resistant options for pharmaceutical and food-grade applications.
Trusted by brands in
Folding Cartons vs. Alternatives
See how our folding cartons compare across key performance factors.
| Feature | Rigid Boxes | Corrugated Boxes | Folding Cartons (SBS) |
|---|---|---|---|
| Material | 2mm greyboard + wrapped | Fluted cardboard | 350-400gsm premium board |
| Print Quality | Wrapped paper — excellent | Flexo — limited detail | Offset — photo quality |
| Shelf Appeal | Premium — luxury feel | Basic — shipping focused | Excellent — retail standard |
| Cost Per Unit | 2.00 – 15.00 USD | 0.30 – 2.00 USD | 0.15 – 1.50 USD |
| Assembly | Fully assembled | Tape or auto-lock | Auto-erect or pre-glued |
| Weight | Heavy — premium feel | Moderate | Light — efficient shipping |
| Finishing Options | Full luxury finishes | Limited finishes | Foil, UV, emboss, window |
| Best For | Luxury, electronics, gifts | Shipping, e-commerce | Retail, pharma, cosmetics, food |
